Panduit UTP6ASD3-Q | Patch Cord | UPC - 07498340746
Description
Description
Cat 6A/Class EA, UTP patch cords shall be constructed of 26 AWG stranded copper cable with an enhanced performance modular plug-on each end. Copper conductors in patch cable shall be twisted in pairs and separated by a quadrant separator. All 4 pairs shall be surrounded by MaTriX tape and a flame-retardant jacket. The patent pending MaTriX tape shall suppress alien crosstalk and allow 10 Gbps transmission. Patch cord cable shall be offered in multiple colors and lengths for design flexibility.

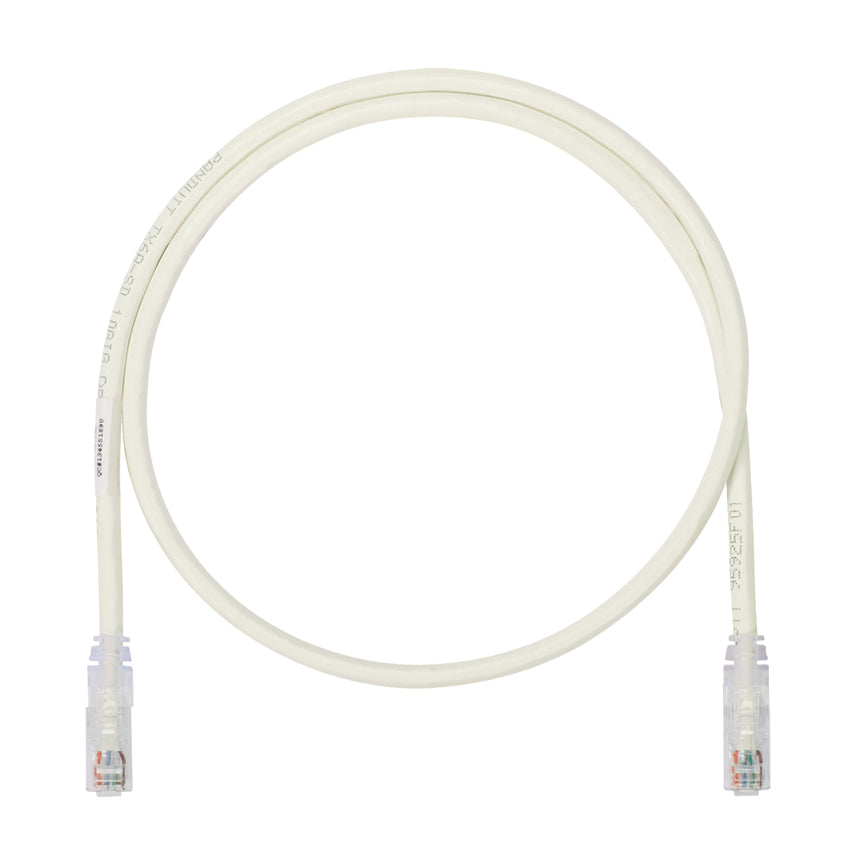

Panduit PanNet TX6A-SD 10Gig Patch Cord, U/UTP, Category: Cat 6A, 26 AWG Conductor, Copper Conductor, Modular Plug Connector, 3 ft Cord, White, 14 to 140 deg F
Features + Benefits
- Interoperable
- Matrix technology
- Smaller cable diameter than most Category 6 patch cords and flexible cable design
- 100% performance tested for wire map, next and return loss
- Superior headroom warranty
- Centered de-embedded plug
- Integral pair manager
- Patented tangle-free latch on modular plugs
- Slender strain relief boot
- Robust construction
- Provides identification of performance level, length and quality control number for future traceability
Panduit UTP6ASD3-Q | Patch Cord | UPC - 07498340746 Key Specs
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O consolidation (3) Data center server virtualization (4) Back-bone aggregation (5) Parallel processing and high speed computing |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 3 |
| Sub Brand | PanNet |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
Panduit UTP6ASD3-Q | Patch Cord | UPC - 07498340746 Data Sheets
| Technical References | Advantages of Using Small Diameter Cables: TR125 | Download and View |
| Selection Guides | Patch Cord Selection Guide (All Regions): COSG11--WW-ENG | Download and View |
| Certifications | ETL UTP6A REPORT OF TEST CERTIFICATE (SPANISH) | Download and View |
Panduit UTP6ASD3-Q | Patch Cord | UPC - 07498340746 Environmental Information
| Panduit's RoHS Statement | Download and View |
