Panduit UTP6ASD3BU | Pan-Net Patch Cords with MaTriX Technology
Regular price
$21.49
Unit price
Brand: Panduit
|
SKU:
MM03-PA6SD-06
Regular price
$21.49
Unit price
Description
Description

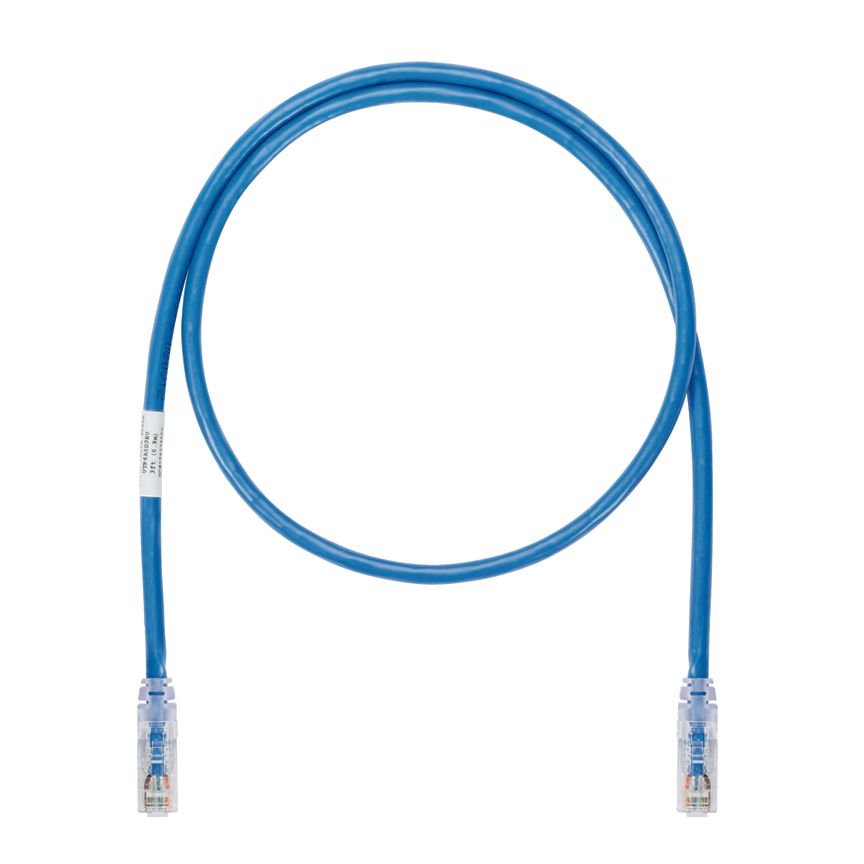

Panduit UTP6ASD3BU | Pan-Net Patch Cords with MaTriX Technology
Category 6A (SD), 10 Gb/s UTP patch cord with TX6A 10Gig Modular Plugs on each end. Blue, 3 ft.
Panduit - UTP6ASD3BU - Features
- Applications: (1) 10GBASE-T Ethernet (2) Data center I/O consolidation (3) Data center server virtualization(4) Back-bone aggregation (5) Parallel processing and high speed computing
- Technical Info: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, UL 1863, CSA standard C22.2, Ro HS Compliant
Specifications
Specifications
Panduit - UTP6ASD3BU - Product Categories
- Communications
- Communications
- Communications
- Copper Systems
- Patch Cords
Panduit - UTP6ASD3BU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTP6ASD3BU |
| Item Description | Pan-Net Patch Cords with MaTriX Technology |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O consolidation (3) Data center server virtualization(4) Back-bone aggregation (5) Parallel processing and high speed computing |
| Product Type | Patch Cords with MaTriX Technology |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.3 |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (ft.) | 3 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Blue |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, UL 1863, CSA standard C22.2, RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | Meets IEC 60603-7 |
| Part Features | MaTriX Technology, Superior headroom warranty, Flexible cable design, Center de-embedded plug, Patented tangle-free latch |
| Category | Category 6A |
| Color | Blue |
| Connector Type | Rj45 To Rj45 |
| Lengths | 3 Ft. | 0.91 M |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
Panduit - UTP6ASD3BU - Package Information
| UPC | 07498330917 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0240 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.2397 |
