Panduit UTP6AX1.5MBU | Patch Cords | UPC - 61305677106

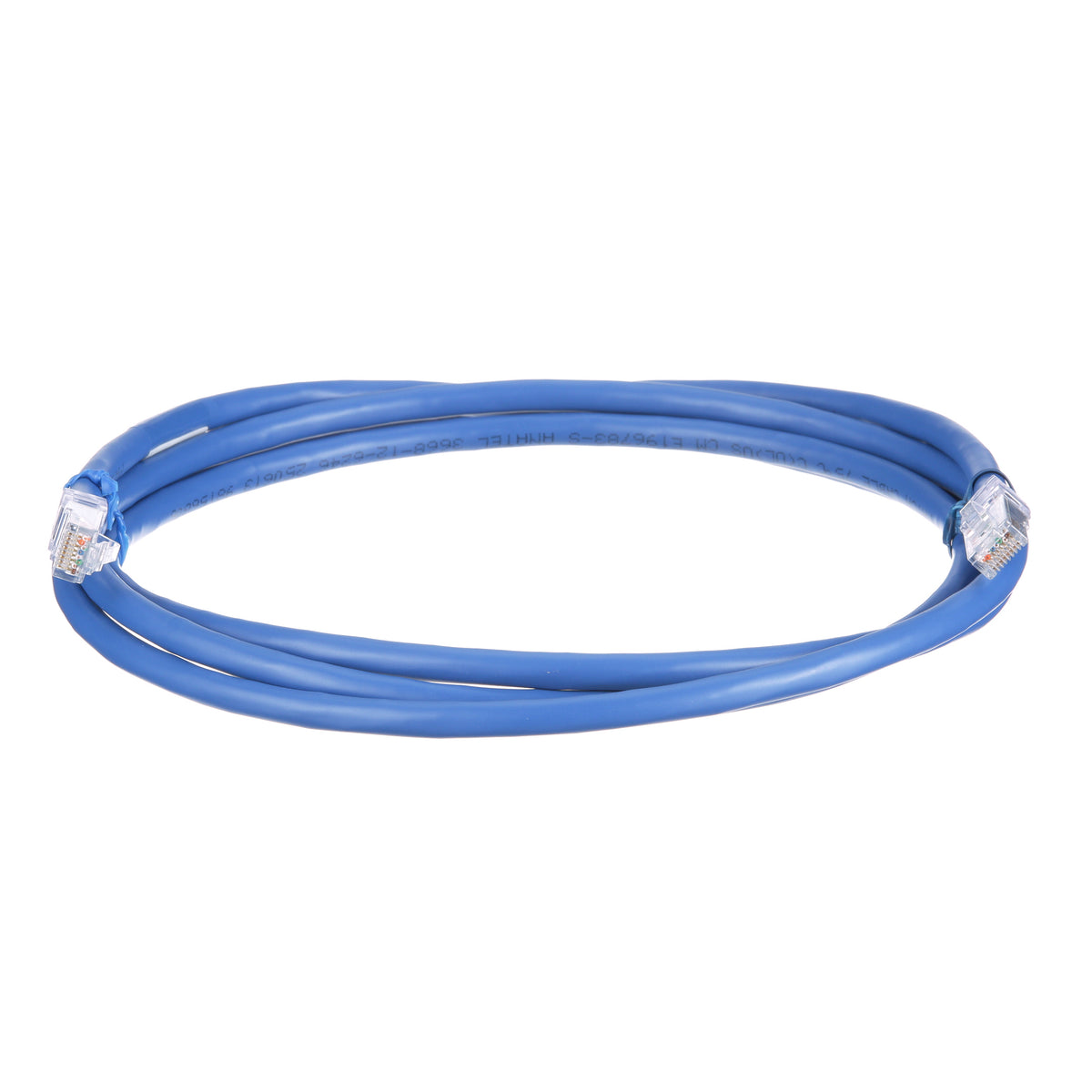

The TX6A 10Gig UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, solid, CM cable with enhanced performance modular plugs. The patch cord offers a small 0.250 inch (6.4mm) cable diameter. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord’s slender strain relief boot provides easy access in high-density applications. The patch cord is 1.5 meters and blue.

---

Panduit Patch Cords Key Specs

Product Type	Patch Cords
Sub Brand	Pan-Net
Conductor Gauge (AWG)	24
Performance Level	Category 6A
Conductor Type	Solid
Cable Construction	U/UTP
Patch Cord Type	Unshielded
Plug Housing Material	Plastic
Jacket Material	Polyvinyl Chloride (PVC)
Connector 1 Type	Modular Plug
Connector 2 Type	Modular Plug
Overall Length (ft.)	4.92
Overall Length (m)	1.5
Nominal Cable Outside Diameter (mm)	6.4
Wiring Scheme	T568B
Maximum Operating Temperature (°C)	60
Maximum Operating Temperature (°F)	140
Minimum Operating Temperature (°C)	-10
Minimum Operating Temperature (°F)	14
Maximum Storage Temperature (°C)	70
