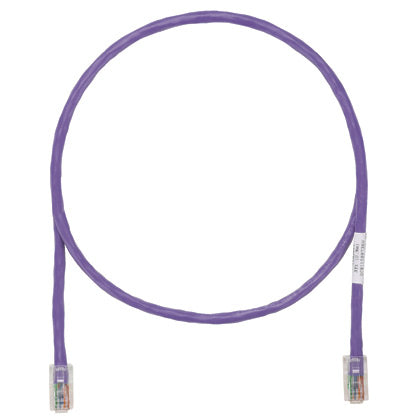

Panduit UTPCH30VLY | Patch Cord | UPC - 07498317794
Regular price
$25.54
Unit price
Brand: Panduit
|
SKU:
MM30-PA6-10
Regular price
$25.54
Unit price
Description
Description
Category 5e/Class D, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable in multiple lengths for design flexibility. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit PanNet TX5e Patch Cord, U/UTP, Series: UTPCH, Category: Cat 5e, 24 AWG Conductor, Stranded Copper Conductor, RJ45 Connector, 30 ft Cord Length, Violet, 14 to 140 deg F
Features + Benefits
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Robust construction
Panduit UTPCH30VLY | Patch Cord | UPC - 07498317794 Key Specs
| Product Type | Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM)(3) Token Ring 4/16(4) Voice/data systems(5) Voice over Internet Protocol (VoIP) |
| Conductor Gauge (kcmil) | 0.4 |
| Conductor Gauge (AWG) | 24 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 30 |
| Sub Brand | PanNet |
| Nominal Cable Outside Diameter (In.) | 0.21 |
| Wiring Scheme | T568A/T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
Panduit UTPCH30VLY | Patch Cord | UPC - 07498317794 Data Sheets
| Certifications | ETL UPTCH Report of Test Certificate | Download and View |
| Specification Sheets | TX5e UTP Patch Cords: WW-COSP50 | Download and View |
| Specification Sheets | TX5500 U/UTP Copper Cable COSP393 | Download and View |
Panduit UTPCH30VLY | Patch Cord | UPC - 07498317794 Environmental Information
| Panduit's RoHS Statement | Download and View |
