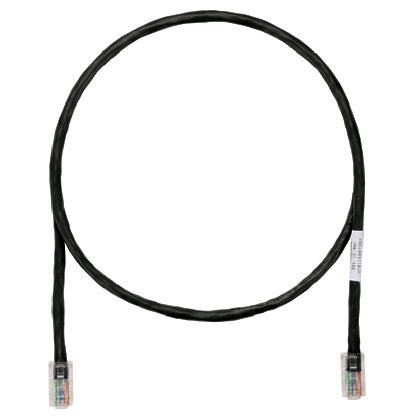

Panduit UTPCH5BLY-Q | Patch Cord | UPC - 07498328335
Description
Description
Category 5e/Class D, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable in multiple lengths for design flexibility. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit PanNet TX5e Patch Cord, Series: UTPCH, Category: Cat 5e, 24 AWG Conductor, U/UTP Copper/Stranded Conductor, RJ45 Modular Plug Connector, 5 ft Cord Length, Black, 140 deg F
Features + Benefits
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Robust construction
Panduit UTPCH5BLY-Q | Patch Cord | UPC - 07498328335 Key Specs
| Note | UTPCH5BLY replaces UTPCH5BL |
| Product Type | Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM(3) Token ring 4/16(4) Voice/data systems(5) Voice over Internet Protocol (VoIP) |
| Conductor Gauge (kcmil) | 0.4 |
| Conductor Gauge (AWG) | 24 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (ft.) | 5 |
| Sub Brand | PanNet |
| Nominal Cable Outside Diameter (In.) | 0.22 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
Panduit UTPCH5BLY-Q | Patch Cord | UPC - 07498328335 Data Sheets
| Certifications | ETL UPTCH Report of Test Certificate | Download and View |
| Specification Sheets | TX5e UTP Patch Cords: WW-COSP50 | Download and View |
| Certifications | ETL UTPCH (SPANISH) REPORT OF TEST CERTIFICATE | Download and View |
Panduit UTPCH5BLY-Q | Patch Cord | UPC - 07498328335 Environmental Information
| Panduit's RoHS Statement | Download and View |
