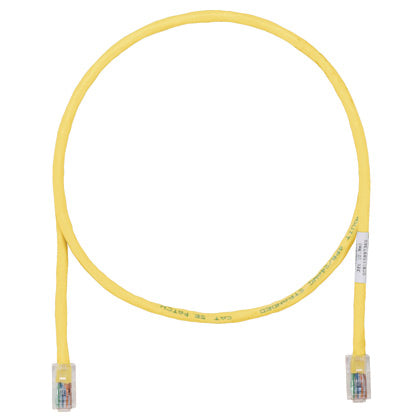

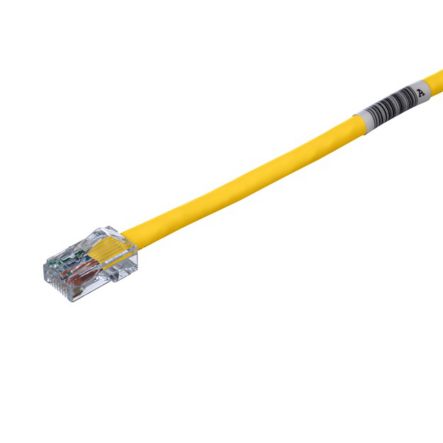

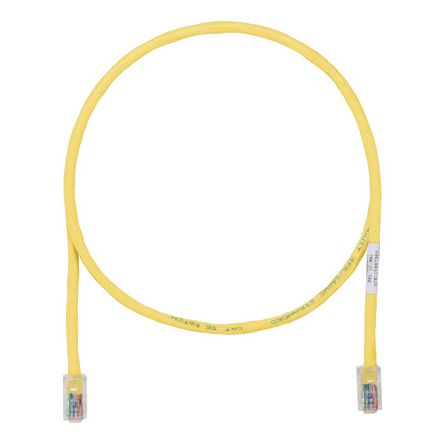

Panduit UTPCH5YLY | Cat 5e 24 AWG UTP Copper Patch Cord, 5 ft, Yellow
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit UTPCH5YLY | Cat 5e 24 AWG UTP Copper Patch Cord, 5 ft, Yellow
Description
Description
Boost your network's speed and reliability with our durable Cat 5e UTP patch cord. Features easy installation and efficient cable management when used with our identification system.
Category 5e, UTP patch cord with Pan-Plug Modular Plugs on each end. Yellow, 5 ft.
Category 5E/Class D, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable in multiple lengths for design flexibility. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit PanNet TX5e Patch Cord, U/UTP, Category: Cat 5e, 24 AWG Conductor, Copper Conductor, Modular Plug Connector, 5 ft Cord, Yellow
Panduit - UTPCH5YLY - Features
- 100% performance tested
- Robust construction
- Provides identification of performance level, length and quality control number for future traceability
- Patented tangle free latch on modular plugs
- Meets individual length requirements for greater system flexibility
- Jack module black plug
Specifications
Specifications
Panduit - UTPCH5YLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPCH5YLY |
| Category | Category 5E |
| Color | Yellow |
| Lengths | 5 Ft. | 1.52 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 5 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.215 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | No Boot |
| UPC | 07498316584 |
