Brand: Panduit
|
SKU:
MM05-PA6-05-PK
Panduit UTPCH5YLY | Cat 5E 24 Awg Utp Copper Patch Cord, 5 Ft, Yellow
Regular price
$118.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit UTPCH5YLY | Cat 5E 24 Awg Utp Copper Patch Cord, 5 Ft, Yellow
Regular price
$118.91
Unit price
Brand: Panduit
|
SKU:
MM05-PA6-05-PK
Regular price
$118.91
Unit price
Shipping calculated at checkout.
Description
Description
Panduit UTPCH5YLY | Cat 5E 24 Awg Utp Copper Patch Cord, 5 Ft, Yellow

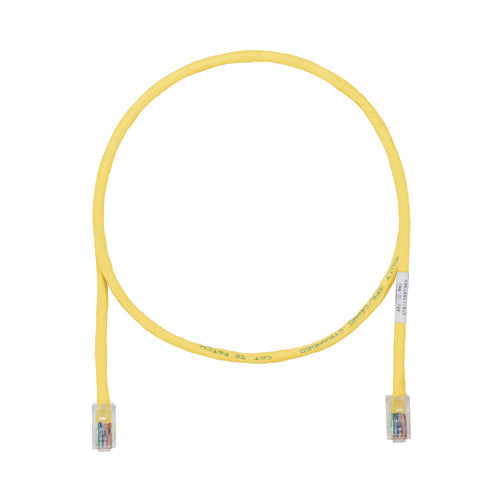

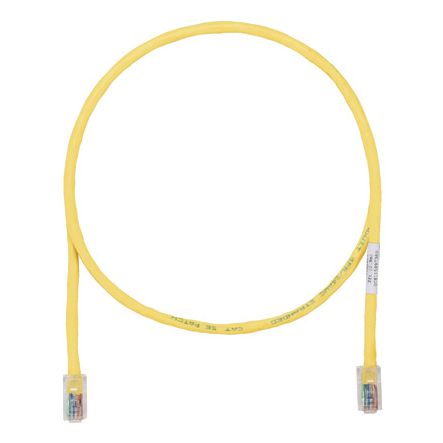

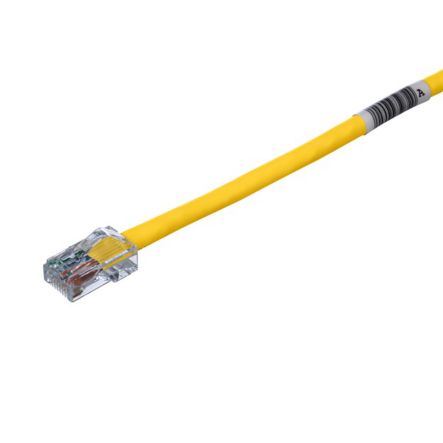

The TX5e Cat 5e UTP Patch Cord is a 5-Foot, Yellow cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit - UTPCH5YLY - Features
- Category 5E/Class D, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable in multiple lengths for design flexibility. All patch cords shall be compatible with both T568A and T568B wiring schemes.
- Panduit PanNet TX5e Patch Cord, U/UTP, Category: Cat 5e, 24 AWG Conductor, Copper Conductor, Modular Plug Connector, 5 ft Cord, Yellow
- 100% performance tested
- Robust construction
- Provides identification of performance level, length and quality control number for future traceability
- Patented tangle free latch on modular plugs
- Meets individual length requirements for greater system flexibility
- Jack module black plug
Specifications
Specifications
Panduit - UTPCH5YLY - Product Categories
- Copper Systems
- Patch Cords
- https://www.panduit.com/content/dam/panduit/en/products/media/8/98/198/9198/110299198.pdf
Panduit - UTPCH5YLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPCH5YLY |
| Item Description | Cat 5E 24 Awg Utp Copper Patch Cord, 5 Ft, Yellow |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 5 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.215 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | No Boot |
| Color | Yellow |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes. |
| IEC Variant | 60603-7 |
| PoE Compatibility | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++) |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
| MPN: | UTPCH5YLY |
| Category Type: | Cat 5e |
| Color: | Yellow |
| Conductor Size: | 24 AWG |
| Conductor Type: | Copper |
| Connector Type: | Modular Plug |
| Cord Length: | 5 ft |
| Jacket Color: | Yellow |
| Series: | UTPCH |
| Temperature Rating: | 14 to 140 deg F |
| Type: | U/UTP |
Panduit - UTPCH5YLY - Package Information
| UPC | 07498316584 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0170 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1703 |
