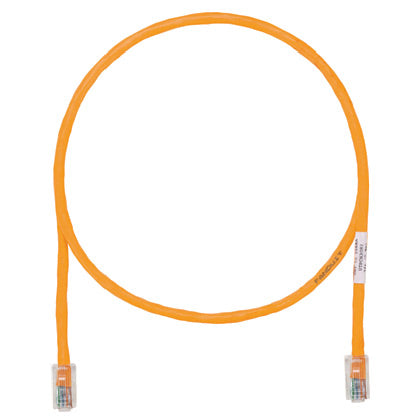

Panduit UTPCH6ORY | Patch Cord
Description
Description
Category 5e, UTP patch cord with Pan-Plug(TM) Modular Plugs on each end.
Category 5E/Class D, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable in multiple lengths for design flexibility. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit PanNet TX5e Patch Cord, U/UTP, Category: Cat 5e, 24 AWG Conductor, Copper Conductor, Modular Plug Connector, 6 ft Cord, Orange
Panduit - UTPCH6ORY - Features
- Interoperable
- Matrix technology
- Smaller cable diameter than most Category 6 patch cords and flexible cable design
- 100% performance tested for wire map, next and return loss
- Superior headroom warranty
- Centered de-embedded plug
- Integral pair manager
- Patented tangle-free latch on modular plugs
- Slender strain relief boot
- Robust construction
- Provides identification of performance level, length and quality control number for future traceability
Specifications
Specifications
Panduit - UTPCH6ORY - Specifications
| Category | Category 5E |
|---|---|
| Color | Orange |
| Lengths | 6 Ft. | 1.83 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Note | UTPCH6ORY replaces UTPCH6OR |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 6 |
| Sub Brand | PanNet |
| Nominal Cable Outside Diameter (In.) | 0.21 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| UPC | 07498316598 |
