Panduit UTPCH7 | Pan-Net Patch Cord
Regular price
$9.28
Unit price
Brand: Panduit
|
SKU:
MM07-PA6-01-CTC
Regular price
$9.28
Unit price
Description
Description

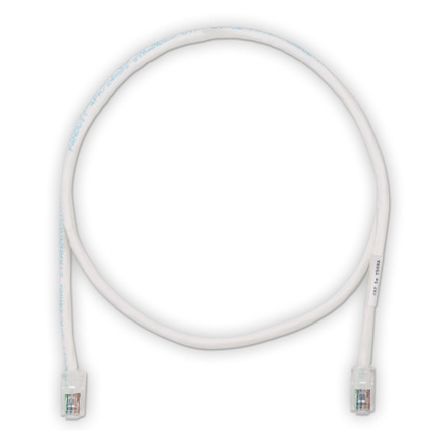

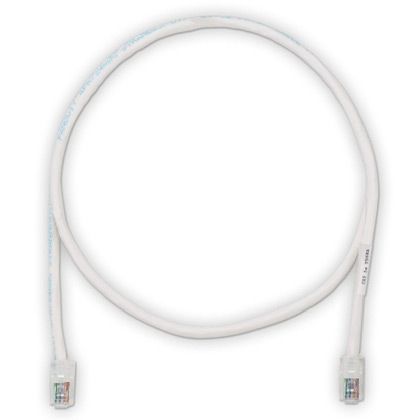

Panduit UTPCH7 | Pan-Net Patch Cord
Category 5e, UTP patch cord with Pan-Plug Modular Plugs on each end, Off White, 7 ft.
Panduit UTPCH7 Category 5e Utp Stranded Patch Cord With Pan-plug? Modular Plugs On Both Ends, Length 7 Ft, White Jacket.
Specifications
Specifications
Panduit - UTPCH7 - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTPCH7 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPCH7 |
| Item Description | Pan-Net Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM(3) Token ring 4/16(4) Voice/data systems(5) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (ft.) | 7 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.22 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Off White |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, UL 1863, CSA standard C22.2, RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | Meets IEC 60603-7 |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Panduit - UTPCH7 - Package Information
| UPC | 07498370869 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0276 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2763 |
Panduit - UTPCH7 - Videos
| Video 1 | Click to View |
|---|
