Brand: Panduit
|
SKU:
MM07-PA6-06

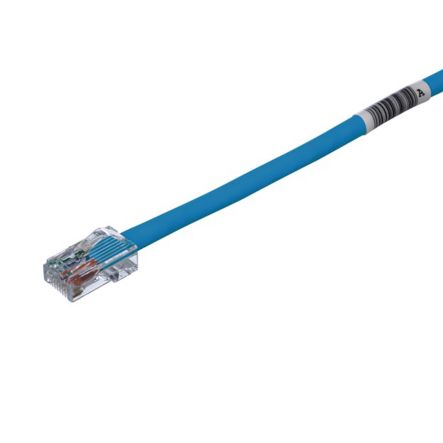

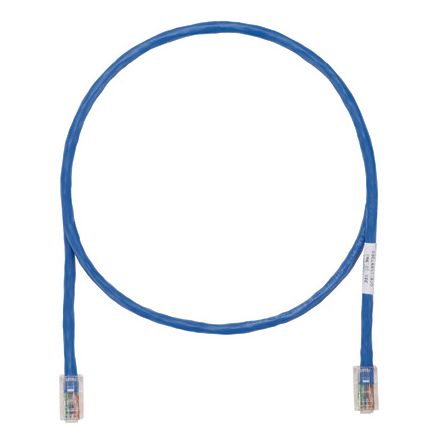

Panduit UTPCH7BUY | Category 5e UTP Stranded Patch Cord With Pan-Plug, Modular Plugs On Both Ends, 7 FT/ 2 MT, Blue Jacket
Regular price
$13.19
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit UTPCH7BUY | Category 5e UTP Stranded Patch Cord With Pan-Pl...
Regular price
$13.19
Unit price
Brand: Panduit
|
SKU:
MM07-PA6-06
Regular price
$13.19
Unit price
Description
Description
Panduit UTPCH7BUY | Cat 5e 24 AWG UTP Copper Patch Cord, 7 ft, Blue
The TX5e Cat 5e UTP Patch Cord is a 7-Foot, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit - UTPCH7BUY - Features
- Copper Patch Cord, Category 5e, Blue Unshielded Twisted Pair (UTP) Cable, 7 Feet, Exceed ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, Each patch cord is 100% performance tested and wired to T568A, Constructed of Category 5e, 24 AWG UTP stranded cable and Pan-Plug Modular Plugs, plug contacts plated with 50 microinches of gold for superior performance, Plug meets all applicable ANSI/TIA/EIA-968-A requirements and exceeds IEC 60603-7 specifications, Patented tangle-free latch prevents snags and provides easy release, saving time on frequent moves, adds, and changes, Labels on patch cords provide identification of performance level, length, and quality control number, Optional patch cord color bands snap on and off individual patch cables offering endless color-coding options, Optional RJ45 plug lock-in device blocks unauthorized removal of cable, IP phone, other networking equipment, or critical connection
- Confidence that Each Patch Cord Delivers Specified Performance
- Centered De-Embedded Plug
- Integral Pair Manager-Optimizes Performance and Consistency by Reducing Untwist at Plug
- Patented Tangle-Free Latch-Prevents Snags and Provides Easy Release, Savin Time on Frequent Moves, Adds and Change
- Flexible Stranded Cable-High Density Installations and Superior Panel Cable Management
- Provides Identification of Performance Level, Length and Quality Control Number for Future Traceability
- Plug Contact Platedwith 50 Microinch of Gold and Rated to 2500 Mating Cycles
- Meets Individual Length and Color-Coding Requirements for Greater System Flexibility
- Secures Plug into Jack to Prevent Unauthorized Removal of Patch Cord
- Tech Info
- IP1
Specifications
Specifications
Panduit - UTPCH7BUY - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTPCH7BUY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPCH7BUY |
| Item Description | Cat 5e 24 AWG UTP Copper Patch Cord, 7 ft, Blue |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 7 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.215 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | No Boot |
| Color | Blue |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes. |
| IEC Variant | 60603-7 |
| PoE Compatibility | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++) |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Panduit - UTPCH7BUY - Package Information
| UPC | 07498316607 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0170 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.1703 |
