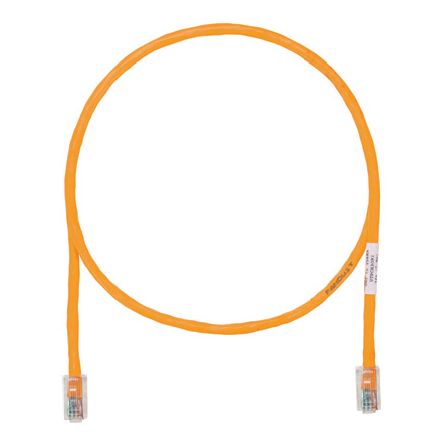

Panduit UTPCH9ORY | Pan-Net Patch Cord
Regular price
$14.50
Unit price
Brand: Panduit
|
SKU:
MM09-PA5E-08
Regular price
$14.50
Unit price
Description
Description
Panduit UTPCH9ORY | Pan-Net Patch Cord
The TX5e Cat 5e UTP Patch Cord is a 9-Foot, Orange cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit UTPCH9ORY Copper Patch Cord, Cat 5e, Orange UTP Cable, 9ft
Specifications
Specifications
Panduit - UTPCH9ORY - Product Categories
- Copper Systems
- Patch Cords
- https://www.panduit.com/content/dam/panduit/en/products/media/8/98/198/9198/110299198.pdf
Panduit - UTPCH9ORY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPCH9ORY |
| Item Description | Pan-Net Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM(3) Token ring 4/16(4) Voice/data systems(5) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (ft.) | 9 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.22 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Orange |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, UL 1863, CSA standard C22.2, RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | Meets IEC 60603-7 |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Panduit - UTPCH9ORY - Package Information
| UPC | 07498317766 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0170 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1703 |
