Panduit UTPCH9Y | Patch Cord
Description
Description

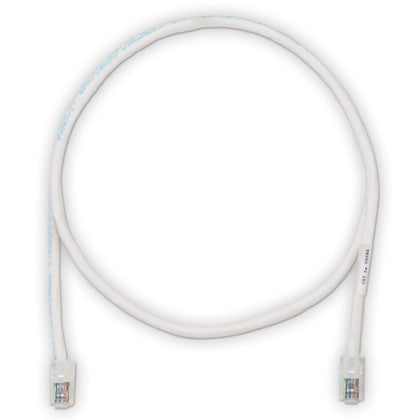

Category 5e, UTP patch cord with Pan-Plug(TM) Modular Plugs on each end.
Category 5e/class D, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable in multiple lengths for design flexibility. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit PanNet TX5e Patch Cord, U/UTP Class D, Series: UTPCH, Category: Cat 5e, 24 AWG Conductor, Stranded Copper Conductor, RJ45 Modular Plug Connector, 9 ft Cord Length, Off-White Jacket, 14 to 140 deg F
Panduit - UTPCH9Y - Features
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Integral pair manager optimizes performance and consistency by reducing untwist at plug
- Patented tangle free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
- Robust construction
- UTP patch cord with Pan-Plug modular plugs on each end
- RJ45 plug lock-in device secures plug into jack to prevent unauthorized removal of patch cord
- 0.22 in OD
Specifications
Specifications
Panduit - UTPCH9Y - Specifications
| Category | Category 5E |
|---|---|
| Color | Off White |
| Lengths | 9 Ft. | 2.74 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM)(3) Token Ring 4/16(4) Voice/data systems(5) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 9 |
| Sub Brand | PanNet |
| Nominal Cable Outside Diameter (In.) | 0.21 |
| Wiring Scheme | T568A/T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| UPC | 07498378713 |
