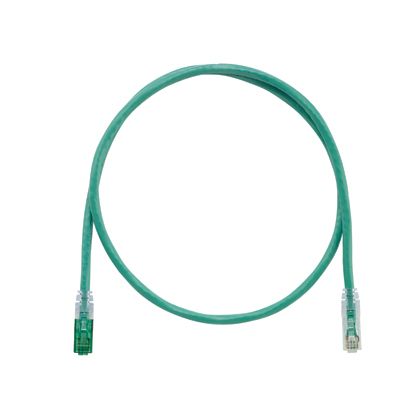

Panduit UTPKSP10GR | Pan-Net Keyed Patch Cord
Description
Description
Designed for optimal performance and easy identification, our Cat 6 keyed to non-keyed UTP patch cord is perfect for professional applications demanding physical security.
Keyed, Category 6, UTP patch cord with TX6 PLUS Keyed Modular Plug on one end and TX6 PLUS Non-Keyed Modular Plug on the other end, Green, 10 ft.
Category 6/Class E keyed UTP patch cords shall be constructed of 24 AWG stranded copper cable with a keyed modular plug on one end and a non-keyed modular plug on the other end. Keyed modular plugs shall be mechanically keyed with color specific positive and negative keying features to prevent unintentional mating with unlike keyed or non-keyed jack modules. Copper conductors in patch cable shall be twisted in pairs and separated by a quadrant separator. All four pairs shall be surrounded by a flame retardant jacket. Patch cords shall be used in all work area outlets and patch panels and shall be compatible with both T568A and T568B wiring schemes.
Panduit TX6 Patch Cord, Series: UTPKSP, Category: Cat 6 Class E, 24 AWG Conductor, U/UTP Copper/Stranded Conductor, Keyed/RJ45 Modular Plug Connector, 10 ft Cord Length, Green Jacket, Clear, 140 deg F
Panduit - UTPKSP10GR - Features
- Color specific keys with positive and negative keying features
- 100% performance tested
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Slender strain relief boot
- Robust construction
Specifications
Specifications
Panduit - UTPKSP10GR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPKSP10GR |
| Category | Category 6 |
| Color | Green |
| Lengths | 10 Ft. | 3.05 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Keyed Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (limited distances as specified in the industry standards)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Token Ring 4/16(4) Digital video and broadband/baseband analog video |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 10 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.23 |
| Wiring Scheme | T568A/T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Green |
| Flammability Rating | CM |
| UPC | 07498311951 |
Panduit - UTPKSP10GR - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.1000 |
