Panduit UTPKSP5MYL | Pan-Net Patch Cord
Regular price
$28.72
Unit price
Brand: Panduit
|
SKU:
10169257
Regular price
$28.72
Unit price
Description
Description

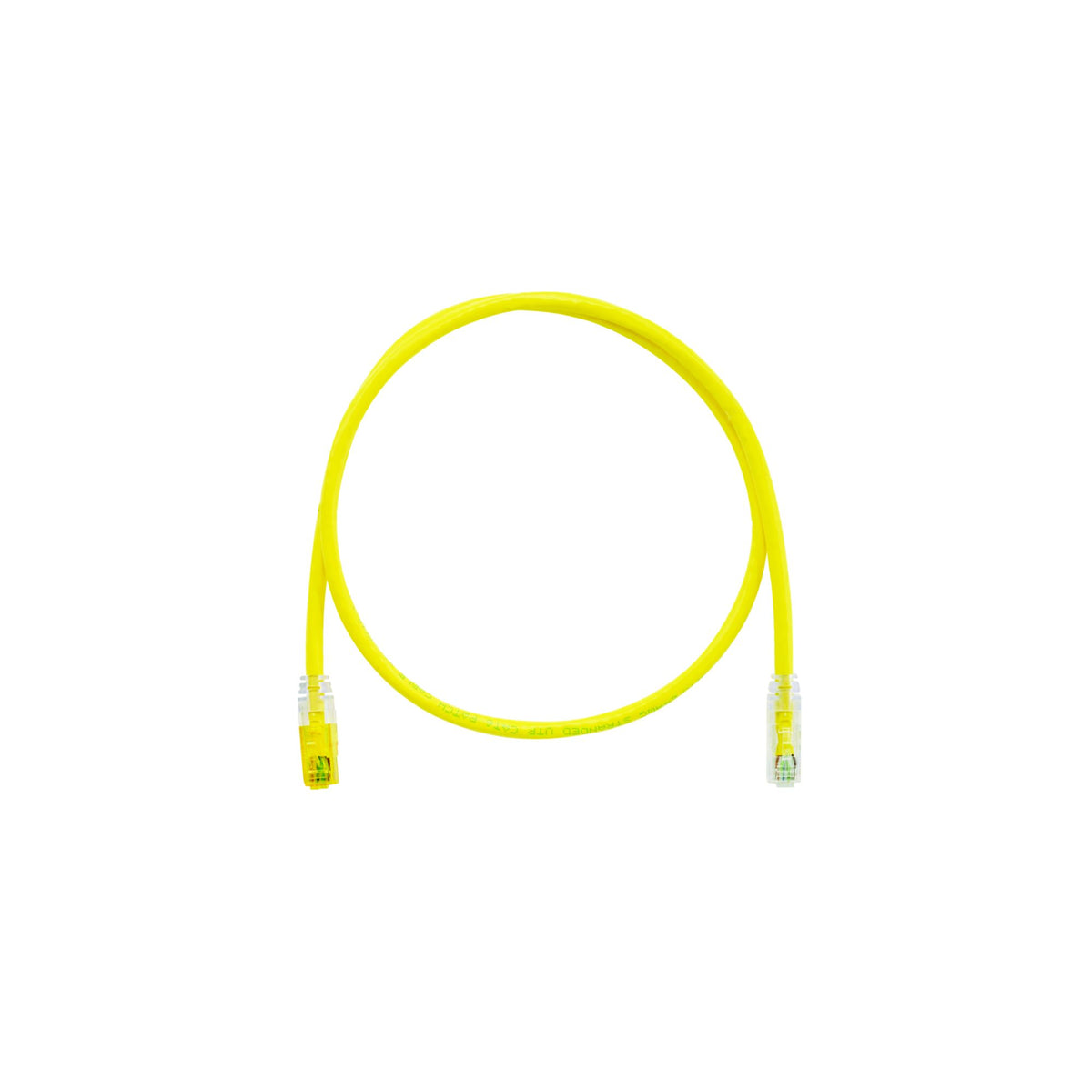

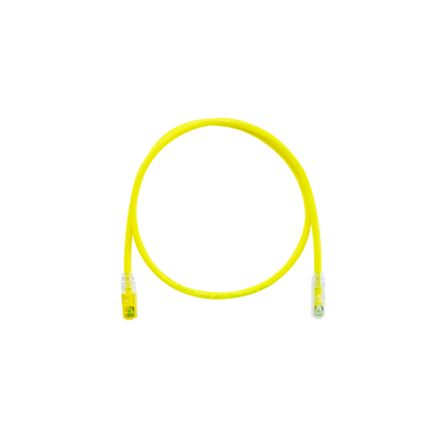

Panduit UTPKSP5MYL | Pan-Net Patch Cord
The TX6 PLUS Keyed Cat 6 UTP Patch Cord is a 5-Meter, Yellow cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable. It's equipped with a TX6 PLUS Keyed Modular Plug on one end and a Non-Keyed Modular Plug on the other. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit UTPKSP5MYL Keyed, Category 6, Utp Patchcord With Tx6 Plus Keyedmodular Plug On One
Specifications
Specifications
Panduit - UTPKSP5MYL - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTPKSP5MYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPKSP5MYL |
| Item Description | Pan-Net Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (limited distances as specified in the industry standards), (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, (3) Token Ring 4/16, (4) Digital video and broadband/baseband analog video |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 5 |
| Nominal Cable Outside Diameter (mm) | 5.8 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Clear |
| Color | Yellow |
| Flammability Rating | CM |
| Standards Met | Certified channel performance in a 4-connector configuration up to 100 meters and exceeds the requirements of ANSI/TIA/EIA-568-B.2-1 Category 6 and ISO 11801 Class E standards; Certified component performance to the ANSI/TIA/EIA-568-B.2-1 Category 6 and ISO 11801 Class E standards; Meets ANSI/TIA-968-A; Meets IEC 60603-7; Meets IEEE 802.3af and draft requirements of IEEE 802.3at for PoE Plus; UL 1863; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Panduit - UTPKSP5MYL - Package Information
| UPC | 07498319971 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0469 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.4694 |
