Panduit UTPSP14BUY | Pan-Net Patch Cord
Regular price
$630.24
Unit price
Brand: Panduit
|
SKU:
MM14-PA7P-06-NP
Regular price
$630.24
Unit price
Description
Description

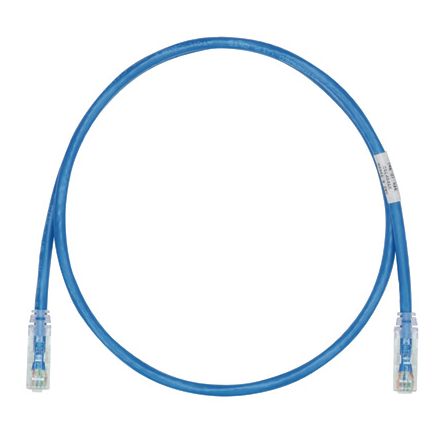

Panduit UTPSP14BUY | Pan-Net Patch Cord
The TX6 PLUS Cat 6 UTP Patch Cord is a 14-Foot, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit - UTPSP14BUY - Features
- Cat 6/class E, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with an enhanced performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable for design flexibility with a clear strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.
- Panduit PanNet TX6 PLUS Patch Cord, U/UTP, Category: Cat 6, 24 AWG Conductor, Copper Conductor, Modular Plug Connector, 14 ft Cord, Blue
- 100% performance tested
- Robust construction
- Provides identification of performance level, length and quality control number for future traceability
- Patented tangle free latch on modular plugs
- Meets individual length requirements for greater system flexibility
- Jack module black plug
Specifications
Specifications
Panduit - UTPSP14BUY - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTPSP14BUY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPSP14BUY |
| Item Description | Pan-Net Patch Cord |
| Application | 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token ring 4/16 4) Digital video and broadband/baseband analog video 5) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 14 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.23 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Blue |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E channel and component standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE, PoE+, PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
| MPN: | UTPSP14BUY |
| Category Type: | Cat 6 |
| Color: | Blue |
| Conductor Size: | 24 AWG |
| Conductor Type: | Copper |
| Connector Type: | Modular Plug |
| Cord Length: | 14 ft |
| Jacket Color: | Blue |
| Series: | UTPSP |
| Temperature Rating: | 14 to 140 deg F |
| Type: | U/UTP |
Panduit - UTPSP14BUY - Package Information
| UPC | 07498316932 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0473 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.4735 |
