Panduit UTPSP15VLY | Pan-Net Patch Cord
Regular price
$27.41
Unit price
Brand: Panduit
|
SKU:
MM15-PA7P-10
Regular price
$27.41
Unit price
Description
Description

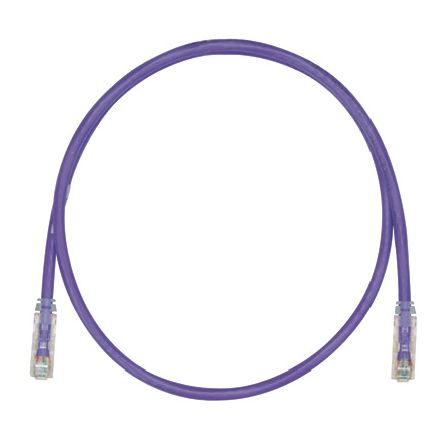

Panduit UTPSP15VLY | Pan-Net Patch Cord
The TX6 PLUS Cat 6 UTP Patch Cord is a 15-Foot, Violet cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit - UTPSP15VLY - Features
- Copper Patch Cord, Category 6, Violet Unshielded Twisted Pair (UTP) Cable, 15 Feet. Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications. Each patch cord is 100 percent performance tested and wired T568B. Constructed of Category 6, 24 AWG UTP stranded cable and TX6 PLUS Modular Plugs; plug contacts plated with 50 microinches of gold for superior performance. Plug meets all applicable ANSI/TIA/EIA-968-A requirements and exceeds IEC 60603-7 specifications. Slender strain relief boot provides easy access in high density applications. Plug uses an integral pair manager to optimize performance and consistency by reducing untwisting of conductors within the plug. Perform in center of TIA/EIA component range, ensuring interoperability and excellent performance. Labels on patch cords provide identification of performance level, length, and quality control number. Patented tangle-free latch prevents snags and provides easy release, saving time on frequent moves, adds, and changes. Optional patch cord color bands snap on and off individual patch cables offering endless color-coding options. Optional RJ45 plug lock-in device blocks unauthorized removal of cable, IP phone, other networking equipment, or critical connection. Third party tested for Category 6 component compliance.
Specifications
Specifications
Panduit - UTPSP15VLY - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTPSP15VLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPSP15VLY |
| Item Description | Pan-Net Patch Cord |
| Application | 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token ring 4/16 4) Digital video and broadband/baseband analog video 5) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 15 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.23 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Violet |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E channel and component standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE, PoE+, PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Panduit - UTPSP15VLY - Package Information
| UPC | 07498316948 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0474 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.4739 |
