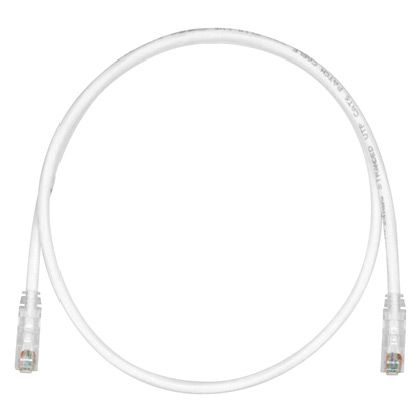

Panduit UTPSP19Y | Pan-Net Patch Cord
Description
Description
Boost your network's speed and reliability with our durable Cat 6 UTP patch cord. Features easy installation and efficient cable management when used with our identification system.
Category 6, UTP patch cord with TX6 PLUS Modular Plugs on each end. Off White, 19 ft.
Cat 6/class E, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with an enhanced performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable for design flexibility with a clear strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit PanNet TX6 PLUS Patch Cord, U/UTP Class E, Series: UTPSP, Category: Cat 6, 24 AWG Conductor, Stranded Copper Conductor, RJ45 Modular Plug Connector, 19 ft Cord Length, Off-White Jacket, 14 to 140 deg F
Panduit - UTPSP19Y - Features
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Integral pair manager optimizes performance and consistency by reducing untwist at plug
- Patented tangle free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
- Slender strain relief boot provides easy access in high density applications
- Robust construction rated to 2500 mating cycles
- RJ45 plug lock-in device secures plug into jack to prevent unauthorized removal of patch cord
- 0.23 in OD
Specifications
Specifications
Panduit - UTPSP19Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPSP19Y |
| Category | Category 6 |
| Color | White |
| Lengths | 19 Ft. | 5.79 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Token ring 4/16(4) Digital video and broadband/baseband analog video(5) Voice over Internet Protocol (VoIP) |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | RJ45 |
| Connector 2 Type | RJ45 |
| Overall Length (ft.) | 19 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Off White |
| UPC | 07498316978 |
Panduit - UTPSP19Y - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.1000 |
