Panduit UTPSP1VLY | Patch Cord | UPC - 07498317005
Description
Description
Cat 6/class E, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with an enhanced performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable for design flexibility with a clear strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.

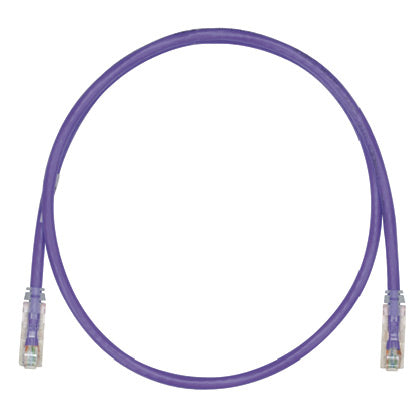

Panduit PanNet TX6 PLUS Patch Cord, U/UTP, Series: UTPSP, Category: Cat 6, 24 AWG Conductor, Stranded Copper Conductor, RJ45 Modular Plug Connector, 1 ft Cord Length, Violet Jacket, 14 to 140 deg F
Features + Benefits
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Slender strain relief boot
- Robust construction
Panduit UTPSP1VLY | Patch Cord | UPC - 07498317005 Key Specs
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Token ring 4/16(4) Digital video and broadband/basebandanalog video(5) Voice over Internet Protocol (VoIP) |
| Note | UTPSP1VLY replaces UTPSP1VL |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 1 |
| Sub Brand | PanNet |
| Nominal Cable Outside Diameter (In.) | 0.23 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
Panduit UTPSP1VLY | Patch Cord | UPC - 07498317005 Data Sheets
| Catalog Cut Sheets | UTPSP Product Page | Download and View |
| System Warranty | Category 6 UTP Guaranteed Headroom Platform North America | Download and View |
| Certifications | ETL UTPSP REPORT OF TEST CERTIFICATE (SPANISH) | Download and View |
Panduit UTPSP1VLY | Patch Cord | UPC - 07498317005 Environmental Information
| Panduit's RoHS Statement | Download and View |
