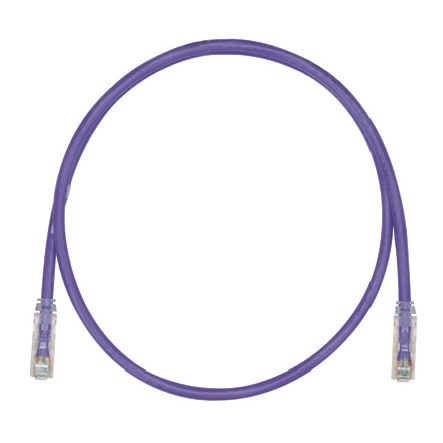

Panduit UTPSP30MVLY | Pan-Net Patch Cord
Regular price
$95.29
Unit price
Brand: Panduit
|
SKU:
MM30M-PA6P-10
Regular price
$95.29
Unit price
Description
Description
Panduit UTPSP30MVLY | Pan-Net Patch Cord
The TX6 PLUS Cat 6 UTP Patch Cord is a 30-Meter, Violet cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit UTPSP30MVLY Copper Patch Cord, Category 6, Violet UTP Cable, 30 Meter
Specifications
Specifications
Panduit - UTPSP30MVLY - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTPSP30MVLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPSP30MVLY |
| Item Description | Pan-Net Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Token ring 4/16(4) Digital video and broadband/baseband analog video(5) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 30 |
| Nominal Cable Outside Diameter (mm) | 6 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Clear |
| Color | Violet |
| Flammability Rating | CM |
| Standards Met | ANSI/TIA-568-C.2, ISO 11801 Class EA, IEEE 802.3af, 802.3at, 802.3bt type 3 and type 4, UL 1863, RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Panduit - UTPSP30MVLY - Package Information
| UPC | 07498332408 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2002 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 2.0019 |
