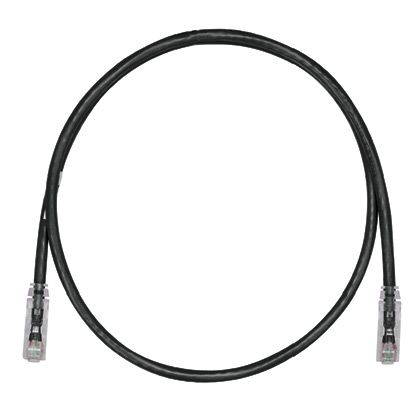

Panduit UTPSP3MBLY | Pan-Net Patch Cord
Description
Description
For reliable network connections, choose our Cat 6 UTP patch cord. Enjoy easy installation, tangle-free use, and quick port identification with our compact design technology.
Category 6/Class E, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with an enhanced performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable for design flexibility with a clear strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit PanNet TX6 PLUS Patch Cord, U/UTP, Category: Cat 6, 24 AWG Conductor, Copper Conductor, Modular Plug Connector, 9.84 ft Cord, Black
Panduit - UTPSP3MBLY - Features
- Interoperable
- Matrix technology
- Smaller cable diameter than most Category 6 patch cords and flexible cable design
- 100% performance tested for wire map, next and return loss
- Superior headroom warranty
- Centered de-embedded plug
- Integral pair manager
- Patented tangle-free latch on modular plugs
- Slender strain relief boot
- Robust construction
- Provides identification of performance level, length and quality control number for future traceability
Specifications
Specifications
Panduit - UTPSP3MBLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPSP3MBLY |
| Product Type | Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digital video and broadband/baseband analog video (4) Voice over Internet Protocol (VoIP) |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 3 |
| Nominal Cable Outside Diameter (mm) | 6 |
| Wiring Scheme | RJ45/T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| UPC | 07498317050 |
Panduit - UTPSP3MBLY - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.1000 |
