Panduit UTPSP6MY | Pan-Net Patch Cord
Regular price
$31.34
Unit price
Brand: Panduit
|
SKU:
MM06M-PA6P-01
Regular price
$31.34
Unit price
Description
Description

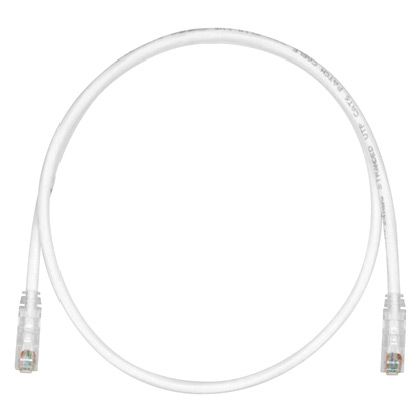

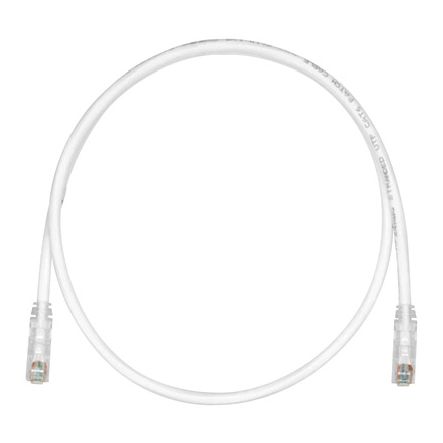

Panduit UTPSP6MY | Pan-Net Patch Cord
The TX6 PLUS Cat 6 UTP Patch Cord is a 6-Meter, Off-White cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit UTPSP6MY Copper Patch Cord, Category 6, Off White Utp Cable, 6 Meter
Specifications
Specifications
Panduit - UTPSP6MY - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTPSP6MY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPSP6MY |
| Item Description | Pan-Net Patch Cord |
| Application | (1) Ethernet 10BASE-T(2) 100BASE-T (Fast Ethernet)(3) 1000BASE-T (Gigabit Ethernet)(4) 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(5) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(6) Token ring 4/16(7) Digital video and broadband/baseband analog video(8) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 1.8 |
| Nominal Cable Outside Diameter (mm) | 5.8 |
| Wiring Scheme | T568A/T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Clear |
| Color | Off White |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E standards; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863 approved; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; CE Compliant; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Panduit - UTPSP6MY - Package Information
| UPC | 07498372608 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0475 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.4754 |
