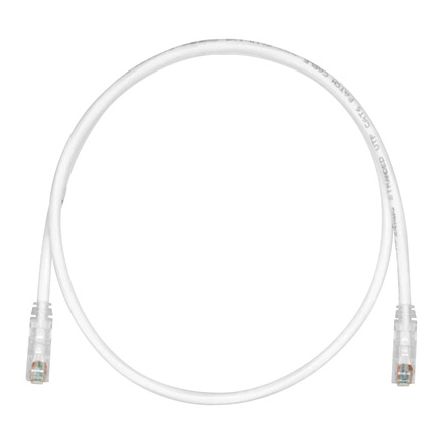

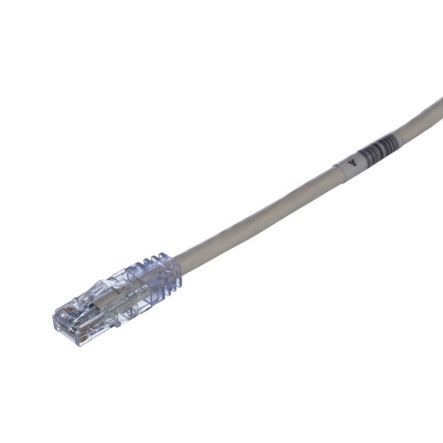

Panduit UTPSP6Y | Copper Patch Cord, Category 6, Off White UTP Cabl...
Regular price
$21.09
Unit price
Brand: Panduit
|
SKU:
MM06-PA7P-01
Regular price
$21.09
Unit price
Description
Description
Panduit UTPSP6Y | Cat 6 24 AWG UTP Copper Patch Cord, 6 ft, White
The TX6 PLUS Cat 6 UTP Patch Cord is a 6-Foot, Off-White cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit - UTPSP6Y - Features
- Category 6, UTP patch cord with TX6(TM) PLUS Modular Plugs on each end.
Specifications
Specifications
Panduit - UTPSP6Y - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTPSP6Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPSP6Y |
| Item Description | Cat 6 24 AWG UTP Copper Patch Cord, 6 ft, White |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digital video and broadband/baseband analog video (4) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 6 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.235 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Off White |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes. |
| IEC Variant | 60603-7 |
| PoE Compatibility | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++) |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Panduit - UTPSP6Y - Package Information
| UPC | 07498317115 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0240 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.2403 |
