Brand: Panduit | SKU: 10061027

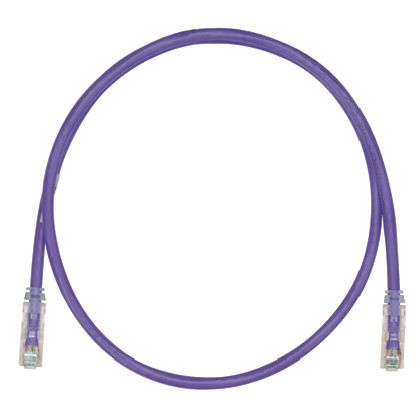

Panduit UTPSPL3MVLY | Pan-Net Patch Cord

Name: Panduit UTPSPL3MVLY | Pan-Net Patch Cord
Brand: Anixter
SKU: 10061027
Price: 11.32 USD
Availability: InStock

$11.32

Description

Category 6, LSZH UTP Patch Cord with TX6 PLUS Modular Plugs on each end.

Panduit UTPSPL3MVLY Category 6 Lszh Utp Patch Cordwith Tx6 Plus Modularplugs On Each End.

Brand Name	Panduit
Manufacturer Part Number	UTPSPL3MVLY
Item Description	Pan-Net Patch Cord
Application	(1) Ethernet 10BASE-T(2) 100BASE-T (Fast Ethernet)(3) 1000BASE-T (Gigabit Ethernet)(4) 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(5) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(6) Token ring 4/16(7) Digital video and broadband/baseband analog video(8) Voice over Internet Protocol (VoIP)
Product Type	Patch Cord
Conductor Gauge (AWG)	24
Conductor Gauge (kcmil)	0.4
Sub Brand	Pan-Net
Performance Level	Category 6
Conductor Type	Stranded
Cable Construction	U/UTP
Patch Cord Type	Unshielded
Plug Housing Material	Polycarbonate
Jacket Material	LSZH Material
Connector 1 Type	Modular Plug
Connector 2 Type	Modular Plug
Overall Length (m)	3
Nominal Cable Outside Diameter (mm)	5.8
Wiring Scheme	T568A/T568B
Maximum Operating Temperature (°C)	60
Minimum Operating Temperature (°C)	-10
Maximum Storage Temperature (°C)	70
Minimum Storage Temperature (°C)	-40
Boot Color	Clear
Color	Violet
Flammability Rating	LSZH
Standards Met	Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E standards; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863 approved; CE Compliant; RoHS compliant
IEC Variant	60603-7
PoE Compatibility	PoE
Plug Type	8 Position
Part Features	100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch
