Panduit UTPSPL4MY | Pan-Net Patch Cord
Description
Description

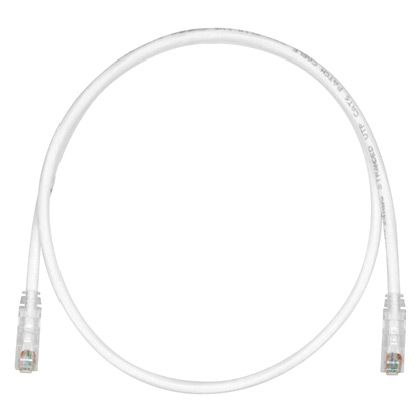

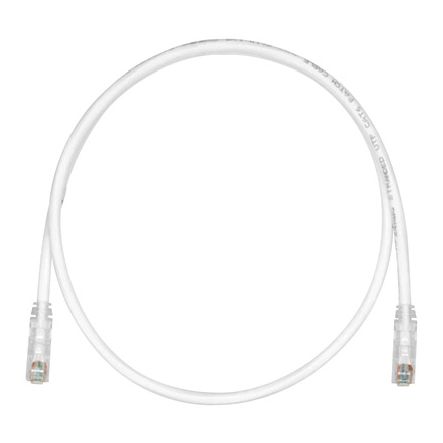

The TX6 PLUS Cat 6 UTP Patch Cord is a 4-Meter, Off-White cord constructed of 24 AWG, unshielded, twisted pair, stranded, LSZH (60332-1) cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit UTPSPL4MY Copper Patch Cord, Cat 6off White, Lszh Utpcable, 4 Meter
Specifications
Specifications
Panduit - UTPSPL4MY - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTPSPL4MY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTPSPL4MY |
| Item Description | Pan-Net Patch Cord |
| Application | (1) Ethernet 10BASE-T(2) 100BASE-T (Fast Ethernet)(3) 1000BASE-T (Gigabit Ethernet)(4) 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(5) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(6) Token ring 4/16(7) Digital video and broadband/baseband analog video(8) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 4 |
| Nominal Cable Outside Diameter (mm) | 5.8 |
| Wiring Scheme | T568A/T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Clear |
| Color | Off White |
| Flammability Rating | LSZH |
| Standards Met | Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E standards; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863 approved; CE Compliant; RoHS compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Panduit - UTPSPL4MY - Package Information
| UPC | 07498374357 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0347 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.3474 |
