Panduit UZJPBU100BL | PanZone Cable Assembly
Regular price
$303.88
Unit price
Brand: Panduit
|
SKU:
10258552
Regular price
$303.88
Unit price
Description
Description
Panduit UZJPBU100BL | PanZone Cable Assembly

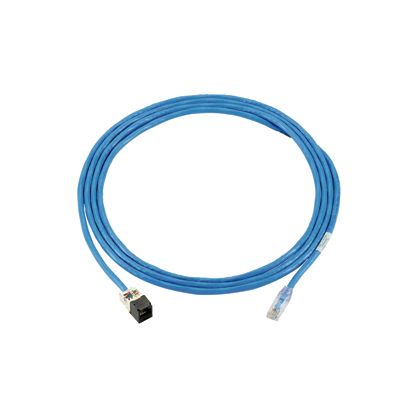

The PanZone TX6A 10Gig Cat 6A UTP Zone Cord is a 100-Foot, Blue cable assembly that is constructed of 23 AWG, shielded, twisted pair, solid, CMP cable with a high-performance TX6A 10Gig modular plug on one end and a TX6A 10Gig Black Jack Module on the other. Its solid conductor design ensures reliable permanent link performance. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Specifications
Specifications
Panduit - UZJPBU100BL - Product Categories
- Copper Systems
- Patch Cords
Panduit - UZJPBU100BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UZJPBU100BL |
| Item Description | PanZone Cable Assembly |
| Application | (1) Data centers and open office architecture environments(2) Zone cabling topology(3) Floor, ceiling and all mount applications |
| Product Type | Cable Assembly |
| Conductor Gauge (AWG) | 23 |
| Conductor Gauge (kcmil) | 0.5 |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Jack Module |
| Connector 2 Type | RJ45 8 |
| Overall Length (ft.) | 100 |
| Sub Brand | PanZone |
| Nominal Cable Outside Diameter (In.) | 0.3 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Blue |
| Flammability Rating | Plenum |
| Standards Met | Exceeds all ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA, meets ANSI/TIA-1096-A requirements, meets IEC 60603-7; IEC 60754-1, meets IEEE 802.3af and IEEE 802.3at for PoE applications, UL 1863, CSA Standard C22.2, RoHS Compliant |
| IEC Variant | 60603-7; 60754-1 |
| PoE Compatibility | PoE |
| Plug Type | Meets IEC 60603-7, RJ45 |
| RapidID Enabled | Yes |
Panduit - UZJPBU100BL - Package Information
| UPC | 07498332791 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.5470 |
| Std. Ctn. Qty. | 5 |
| Std. Ctn. Volume (cf) | 2.7352 |
