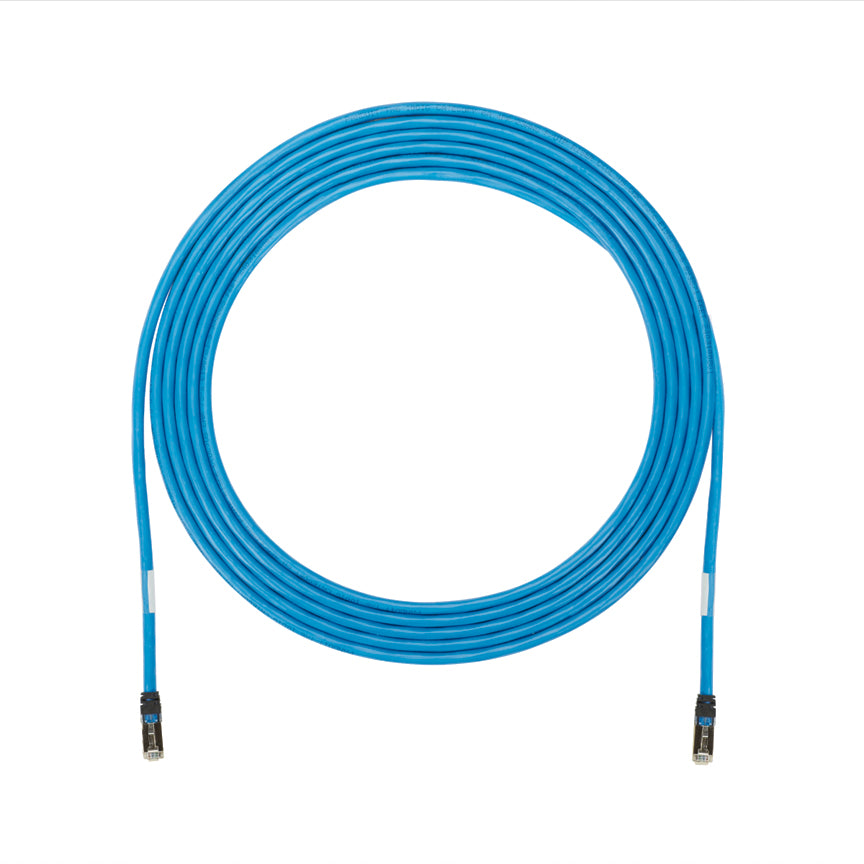

Panduit UZPPBU80 | Cable Assembly | UPC - 07498332717
Regular price
$241.58
Unit price
Brand: Panduit
|
SKU:
MM80-PDTC6A-06
Regular price
$241.58
Unit price
Description
Description
Zone cable assemblies shall constructed Category , 26 AWG 23 AWG, solid, UTP, twisted cable available to jack to termination configurations. All cable assemblies shall available plenum, riser LSZH (Low Smoke Zero Halogen) flammability shall wired according to guidelines. A variety shall available for design flexibility.
Panduit PanZone Cable Assembly, Plenum, Series: UZPPBU, Category: Cat 6A Class EA, 23 AWG Conductor, U/UTP Copper/Solid Conductor, Modular Plug/Plug to Plug Connector, 80 ft Cord Length, Blue, 140 deg F
Features + Benefits
- 100% performance tested
- Robust construction
- Provides identification of performance level, length and quality control number for future traceability
- Patented tangle free latch on modular plugs
- Meets individual length requirements for greater system flexibility
Panduit UZPPBU80 | Cable Assembly | UPC - 07498332717 Key Specs
| Application | (1) Data centers and open office architecture environments(2) Zone cabling topology(3) Floor, ceiling and all mount applications |
| Product Type | Cable Assembly |
| Conductor Gauge (AWG) | 23 |
| Conductor Gauge (kcmil) | 0.5 |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (ft.) | 80 |
| Sub Brand | PanZone |
| Nominal Cable Outside Diameter (In.) | 0.3 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
Panduit UZPPBU80 | Cable Assembly | UPC - 07498332717 Data Sheets
| Part Drawings | TX6A 10Gig UTP Plug to Plug Zone Cord: 10M185BC-02 | Download and View |
| Specification Sheets | PanZone Category 6A UTP Cable Assemblies: COSP323--WW-ENG | Download and View |
Panduit UZPPBU80 | Cable Assembly | UPC - 07498332717 Environmental Information
| Panduit's RoHS Statement | Download and View |
