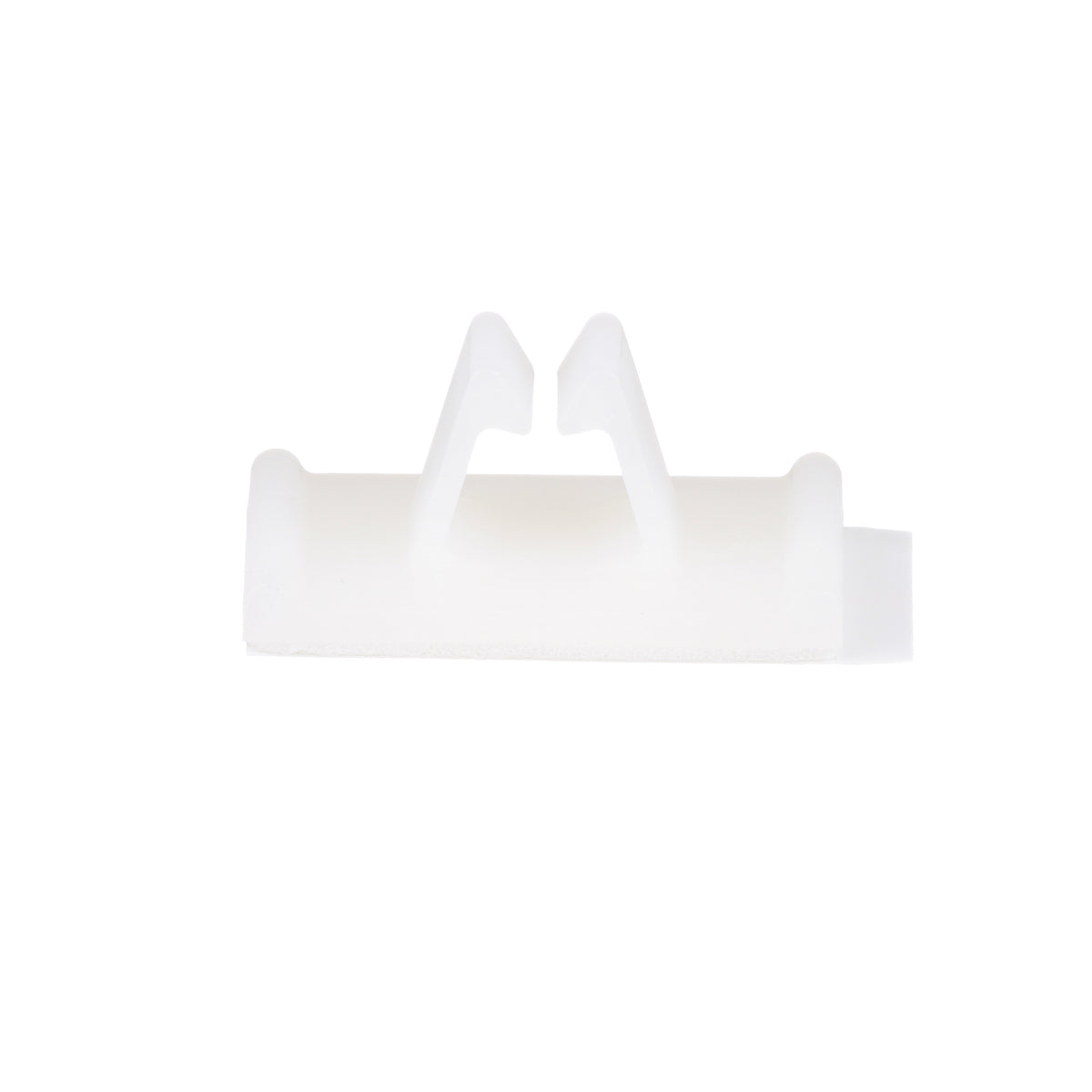

Panduit VCC25-A-M | Vertical Cord Clip | UPC - 07498338410
Description
Description
Panduit offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit adhesive backed mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Cord Clip, Adhesive Backed Vertical, 1/4 in Cable, 0.25 lb Static Load, Rubber Adhesive Tape Mounting, Specifications: 600 A, 27/31/36/40/44 in W Box Range, Nylon 6.6, 1 in L x 0.5 in W x 0.44 in H Dimensions
Features + Benefits
- Releasable latches allow addition or removal of cables
- Superior adhesive for long-term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
- 1-piece solutions lower inventory costs and speed installation
- Bevel entry on wire clips speeds installation
- Cable tie entry ramps guide the cable tie into the mount
Panduit VCC25-A-M Key Specs
| Application | Route and Secure Cords and Cables |
| Product Type | Vertical Cord Clip |
| Adhesive Material | Rubber |
| Body Material | Nylon 6.6 |
| Color | Natural |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.25 |
| Maximum Bundle Diameter (mm) | 6.4 |
| Mount Method | Rubber Adhesive |
| Overall Height (In.) | 0.44 |
| Overall Height (mm) | 11.2 |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Standards Met | RoHS Complaint |
| Vertical Static Load Capacity (kg) | 0.113 |
| Vertical Static Load Capacity (lb) | 0.25 |
| Horizontal Static Load Capacity (kg) | 0.113 |
| Horizontal Static Load Capacity (lb) | 0.25 |
Panduit VCC25-A-M Data Sheets
| Product Bulletins | PanTher LS8E and LS8EQ Hand-Held Thermal Transfer Printers | Download and View |
| Part Drawings | P1 Cassette Continuous Tape Label | Download and View |
| Product Bulletins | PanTher LS8E and LS8EQ Hand-Held Thermal Transfer Printers: IDCB79--SA-NOR | Download and View |
