Panduit VS-AVT2-C08L10 | Absence of Voltage Tester | UPC - 61305651734
Description
Description
When servicing electrical equipment, workers must comply with safety regulations that require a voltage verification test to validate the absence of voltage. This process includes a number of stages that can be complex and time consuming when using hand-held portable test instruments. The VeriSafe absence of voltage tester from Panduit simplifies this process by automating the voltage verification process. Once installed, a simple push of a button enables qualified electrical workers to verify the absence of voltage and see an active indication when the absence of voltage is confirmed. This provides a new and innovative way to safely, reliably and efficiently verify the absence of voltage before accessing potentially dangerous electrical equipment.

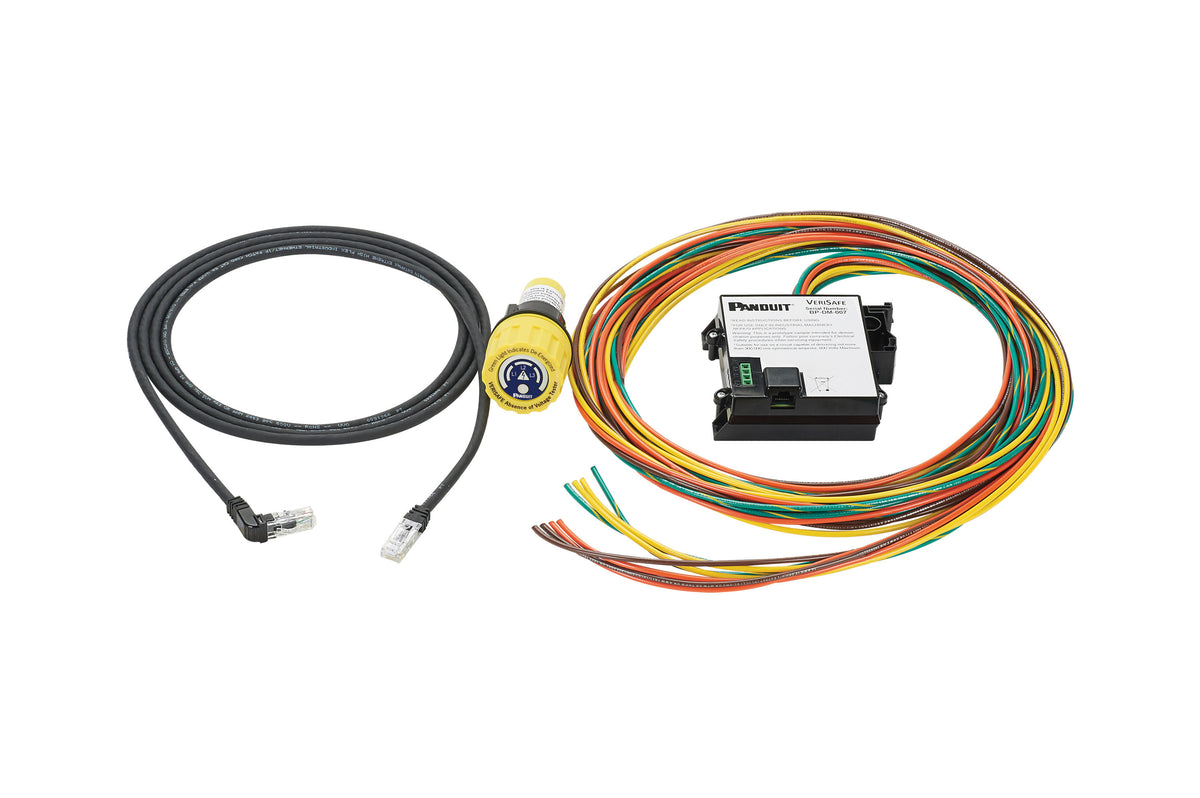

Panduit VeriSafe Voltage Tester, 10 ft Lead Length, 600 VAC/VDC Maximum Measurable Voltage, Locking Connector, 3.6 VDC AA Lithium-Ion Battery, 50/60 Hz Frequency, Environmental Conditions: 32 to 140 deg F Operating Temperature, 5 to 95% Non-Condensing Humidity, NEMA 1/4/4X/12/13/IP20/IP66/IP67 Enclosure
Features + Benefits
- Improved safety and risk reduction, increased productivity
- Simplified process for easier compliance
- Reliable results, fail safe design with active indications
- Designed for testing 3-phase circuits upto 600 VAC install on-line or load side of electrical disconnect detects absence of AC and DC voltage
- All VeriSafe absence of voltage testers are tested to NEMA 4X/IP66/IP67 VS-AVT2 parts are rated to Class 1 division 2 and Class 1 zone 2 environments
Panduit Panduit VS-AVT2-C08L10 | Absence of Voltage Tester | UPC - 61305651734 Key Specs
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Sub Brand | VeriSafe |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Product Type | Absence of Voltage Tester |
| Maximum Storage Temperature (°C) | 85 |
| Maximum Storage Temperature (°F) | 185 |
| Minimum Storage Temperature (°C) | -45 |
| Minimum Storage Temperature (°F) | -49 |
| Battery Voltage (V) | 3.6 |
| Battery Chemistry | Lithium-Ion |
| Standards Met | UL1436; IEC 61508; UL 508 & CSA C22.2 NO.14-13; IEC / UL / CSA C22.2 61010-1, 61010-2-030-12; UL 50E |
| For Use With | 1, 2 or 3-phase AC or DC systems up to 600V |
Panduit Panduit VS-AVT2-C08L10 | Absence of Voltage Tester | UPC - 61305651734 Data Sheets
| Technical References | VeriSafe AVT Installation Considerations in VFDs | Download and View |
Panduit Panduit VS-AVT2-C08L10 | Absence of Voltage Tester | UPC - 61305651734 Environmental Information
| Panduit's RoHS Statement | Download and View |
