Description
Description

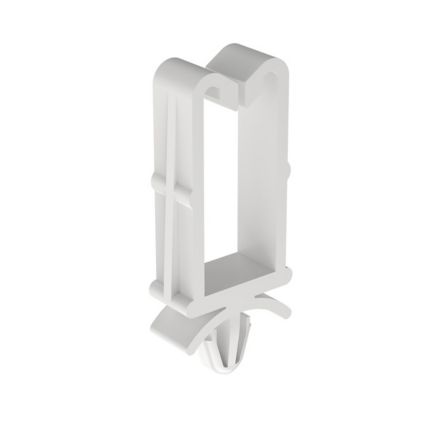

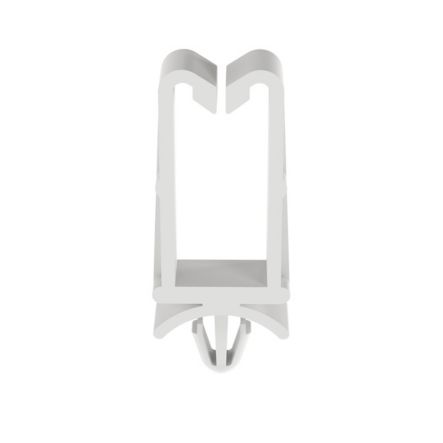

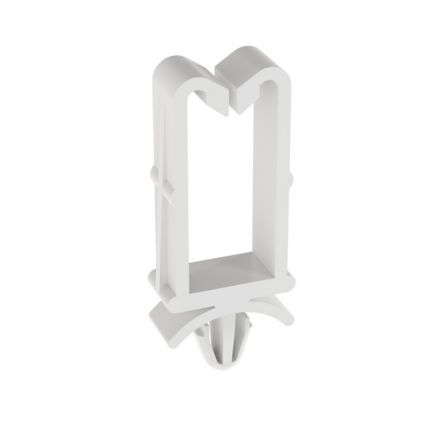

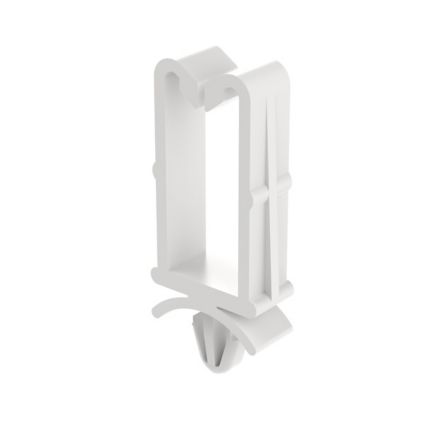

Panduit VWS3750-M | VWS3750-M Wire Saddle, Natural, PA 6.6, Push Barb, 1.15x0.57", PK1000
Panduit VWS3750-M Vertical Wire Saddles are designed with a funnel entry to allow fast insertion of wires and cables. The wing push mount design provides added stability. For use in indoor environments and with maximum bundle range of 0.38" x 0.50" (9.7mm x 12.7mm). Made of Nylon 6.6, are natural in color and come packages of 1000.
Panduit VWS3750-M | Panduit Vws3750-M Vertical Wire Saddle
Panduit - VWS3750-M - Features
- Panduit VWS3750-M Vertical Wire Saddles are designed with a funnel entry to allow fast insertion of wires and cables. The wing push mount design provides added stability. For use in indoor environments and with maximum bundle range of 0.38 x 0.50 (9.7m m x 12.7mm). Made of Nylon 6.6, are natural in color and come packages of 1000.
- Technical Information: UL Recognized: E136577, RoHS Compliant
Specifications
Specifications
Panduit - VWS3750-M - Product Categories
- Wire Routing, Management & Protection
- Wire Saddles, Wire Retainers, & Wire Standoffs
Panduit - VWS3750-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | VWS3750-M |
| Item Description | VWS3750-M Wire Saddle, Natural, PA 6.6, Push Barb, 1.15x0.57", PK1000 |
| Note | For vertical loading configuration |
| Product Type | Wire Saddle - Push Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Mount Method | Push Barb |
| Resistance Properties | Flame Resistant |
| Standards Met | UL Recognized: E136577, RoHS Compliant |
| Maximum Bundle Diameter (In.) | 0.375 |
| Maximum Bundle Diameter (mm) | 9.5 |
| Standoff Height (In.) | 0.67 |
| Standoff Height (mm) | 17 |
| Overall Length (In.) | 1.15 |
| Overall Length (mm) | 29.1 |
| Overall Width (In.) | 0.57 |
| Overall Width (mm) | 14.5 |
Panduit - VWS3750-M - Package Information
| UPC | 07498307357 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1462 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.7311 |
