Panduit WG12BL10 | Wyr-Grid Pathway, Black
Regular price
$437.91
Unit price
Description
Description

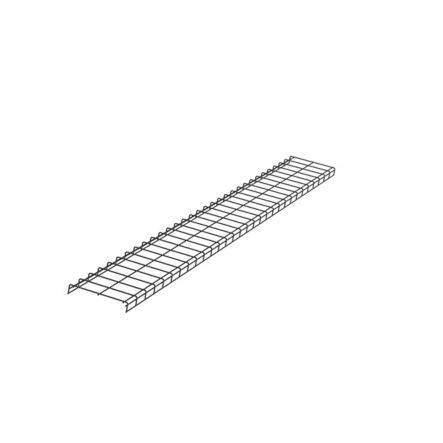

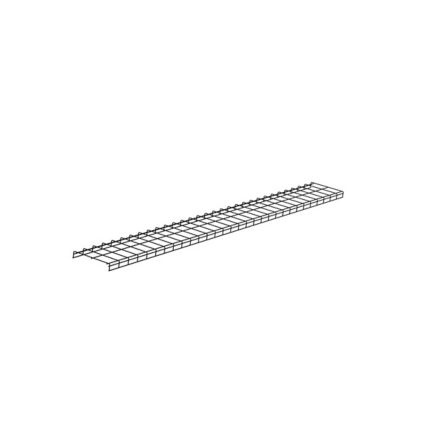

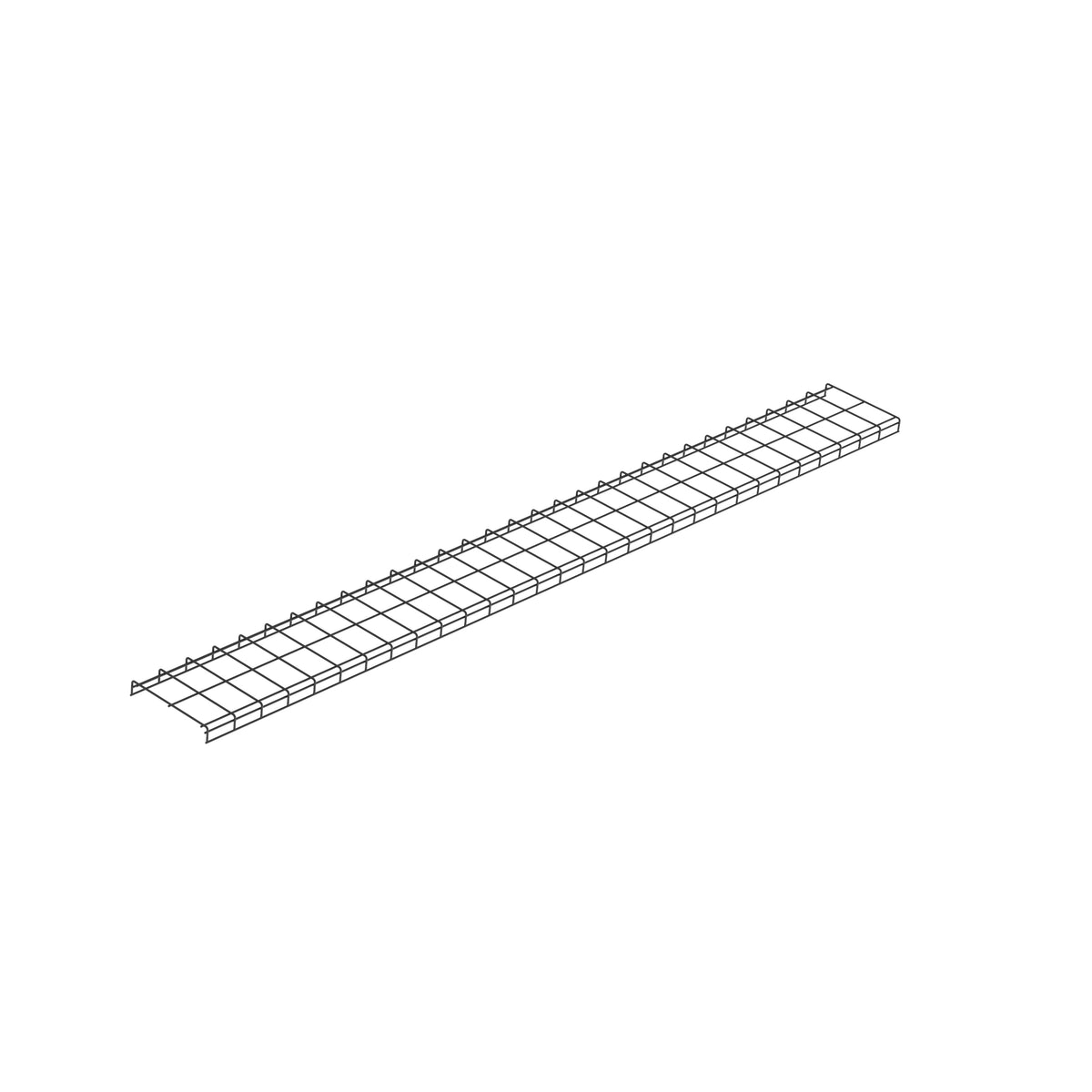

Panduit WG12BL10 | Wyr-Grid Pathway, Black
Accommodate more cables and cassettes for efficient cable management with our overhead pathway, offering you superior strength and faster installation.
Panduit Wyr-Grid Cable Tray, 12 in Width, 118-7/20 in Length, 2.09 in Overall Height, Steel, Powder Coated
Panduit - WG12BL10 - Features
- The Wyr-Grid pathway section protects cables between the main distribution area and the equipment distribution area
- Unlike other pathways, it installs quickly and can be modified easily- optional sidewalls snap-on without extra hardware or tools
- WGSPL1218BL splice connector, WGINTSPLBL intersection splice
Specifications
Specifications
Panduit - WG12BL10 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WG12BL10 |
| Product Type | Pathway |
| Application | Data Centers, Connected Buildings, and Industrial Automation Applications |
| Color | Black |
| Sub Brand | Wyr-Grid |
| Finish/Coating | Black Powder-Coated |
| For Use With | WGSPL1218BL, WGINTSPLBL |
| Material | Steel |
| Load Capacity of 6-Foot Span (lb/ft) | 69 |
| Overall Length (ft.) | 10 |
| Overall Length (m) | 3 |
| Overall Width (In.) | 12 |
| Overall Width (mm) | 304.8 |
| Overall Height (In.) | 2.09 |
| Overall Height (mm) | 53.1 |
| Standards Met | UL Classified for their Suitability for use as Equipment Grounding Conductor in Accordance with Sections 392.3(C) and 392.7(B) of the NEC, Metal Cable Tray in Accordance with CAN/CSA-C22.2 No.126.1-02, NEMA VE 1-2002 and ANSI/NFPA 70, “National Electric C |
| UPC | 07498332352 |
Panduit - WG12BL10 - Videos
| Panduit WG12BL10 Video 1 | Click to View |
|---|
