Panduit WG12FRTBBL | Wyr-Grid Trapeze Bracket, Black
Description
Description

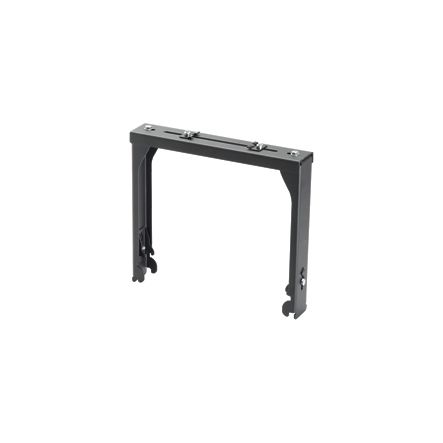

The Wyr-Grid Trapeze Bracket attaches to the 12 inch (304.8mm) wide Wyr-Grid Pathway to support a secondary FiberRunner 4x4 or 6x4 Channel above the Wyr-Grid Pathway. It measures 12.2 inches H x 12.7 inches L (309.9mm x 321.6mm). It adjusts 6.6 inches (166.6mm) to 9.9 inches (251.0mm) over the top surface of the Wyr-Grid pathway.
Wyr-Grid 12 inch (305mm) width FiberRunner QuikLock Trapeze Bracket. Attaches to the Wyr-Grid 12 inch (305mm) wide Pathway to support a secondary FiberRunner 4x4 or 6x4 Channel above the Wyr-Grid Pathway.
Specifications
Specifications
Panduit - WG12FRTBBL - Product Categories
- Wire Routing, Management & Protection
- Wire Mesh Mounting Brackets
Panduit - WG12FRTBBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WG12FRTBBL |
| Item Description | Wyr-Grid Trapeze Bracket, Black |
| Application | (1) Within Data Centers, Connected Buildings and Industrial Automation Application (2) FiberRunner Pathways |
| Product Type | Bracket |
| Color | Black |
| Finish/Coating | Powder-Coated |
| For Use With | Wyr-Grid Pathways |
| Includes | (1) One Wyr-Grid 12" Width Fiberrunner Trapeze Bracket Assembly for 4X4 and 6X4(2) Two Wyr-Grid Fiberrunner Trapeze Upright Support Bracket Assemblies(3) Two 1/4-20 X 3/4 Hex Head Cap Screws(4) Four 1/4 -20 Helical Spring Lockwasher(5) Two 1/4-20 SAE |
| Material | Steel |
| Sub Brand | Wyr-Grid |
| Standards Met | RoHS Compliant |
| Number of Pieces | 2 |
| Overall Height (In.) | 12.2 |
| Overall Height (mm) | 309.9 |
| Overall Length (In.) | 12.66 |
| Overall Length (mm) | 321.6 |
| Overall Width (In.) | 2.26 |
| Overall Width (mm) | 57.4 |
Panduit - WG12FRTBBL - Package Information
| UPC | 07498333215 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1576 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - WG12FRTBBL - Videos
| Video 1 | Click to View |
|---|
