Panduit WG18FRTBBL | Wyr-Grid Trapeze Bracket,18",BL,1EA
Description
Description

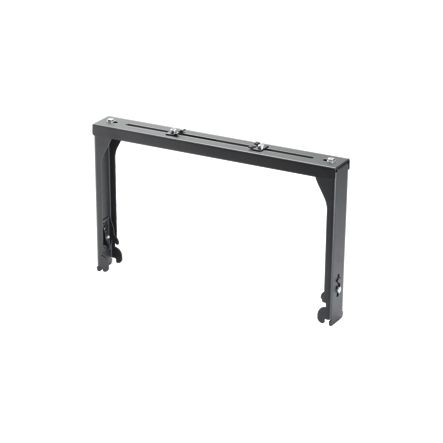

The Wyr-Grid 18" (457.2 mm) FiberRunner QuikLock Trapeze Bracket is made of steel and is black powder coated. It is 12.2" (309.9 mm) high, 18.7" (475.0 mm) long, 2.3" (58.4 mm) wide, and 18.7" (475.0 mm) deep. It attaches to the Wyr-Grid 18" (457.2 mm) wide pathway to support a secondary FiberRunner 4 x 4 or 6 x 4 channel above the Wyr-Grid pathway. It adjusts 6.6" (166.6 mm) to 9.9" (251.0 mm) over the top surface of the Wyr-Grid pathway. It comes in standard packages of one.
Wyr-Grid 18"; (457mm) width FiberRunner QuikLock(TM) Trapeze Bracket. Attaches to the Wyr-Grid 18"; (457mm) wide Pathway to support a secondary FiberRunner 4x4 or 6x4 Channel above the Wyr-Grid Pathway. Adjustable 6 9/16"; to 9 7/8"; over the top surf ace of the Wyr-Grid Pathway. Available in black powder coat only.
Specifications
Specifications
Panduit - WG18FRTBBL - Product Categories
- Wire Routing, Management & Protection
- Wire Mesh Mounting Brackets
Panduit - WG18FRTBBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WG18FRTBBL |
| Item Description | Wyr-Grid Trapeze Bracket,18",BL,1EA |
| Application | (1) Within Data Centers, Connected Buildings and Industrial Automation Application (2) FiberRunner Pathways |
| Product Type | Bracket |
| Color | Black |
| Finish/Coating | Black/Powder-Coated |
| For Use With | Wyr-Grid Pathways |
| Includes | (1) One Wyr-Grid 18" Width Fiberrunner Trapeze Bracket Assembly for 4X4 and 6X4 (2) Two Wyr-Grid Fiberrunner Trapeze Upright Support Bracket Assemblies (3) Two 1/4-20 X 3/4 Hex Head Cap Screws (4) Four 1/4 -20 Helical Spring Lockwasher (5) Two 1/4-20 SAE |
| Material | Steel |
| Sub Brand | Wyr-Grid |
| Standards Met | RoHS Compliant |
| Number of Pieces | 2 |
| Overall Height (In.) | 12.2 |
| Overall Height (mm) | 309.9 |
| Overall Length (In.) | 18.66 |
| Overall Length (mm) | 474 |
| Overall Width (In.) | 2.26 |
| Overall Width (mm) | 57.4 |
Panduit - WG18FRTBBL - Package Information
| UPC | 07498333214 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1576 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - WG18FRTBBL - Videos
| Video 1 | Click to View |
|---|
