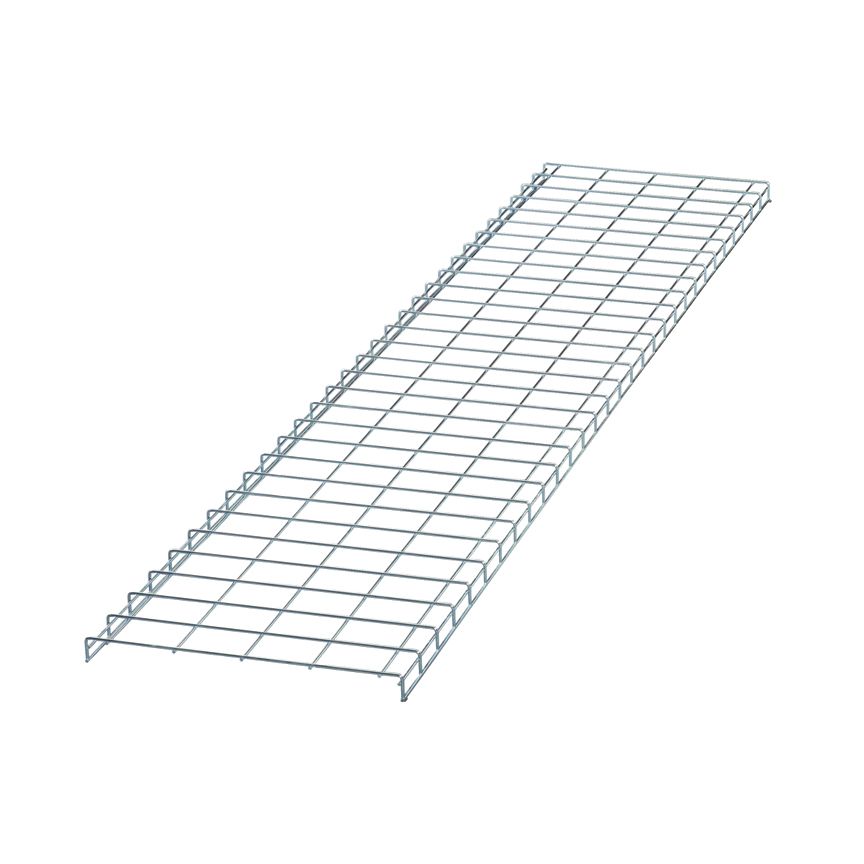

Panduit WG24EZ10 | Pathway | UPC - 07498399626

The Wyr-Grid Pathway Section protects cables between the Main Distribution Area and the Equipment Distribution Area. Unlike other pathways, it installs quickly and can be modified easily, optional sidewalls snap on without extra hardware or tools. Splice connector: WGSPL2430BL, Intersection splice: WGINTSPLBL, Steel, 118.4in x 24.5in x 2.1in (3007mm, 622mm, 53mm), Electro Zinc plated.

---

Panduit WG24EZ10 Key Specs

Application	Data Centers, Connected Buildings, and Industrial Automation Applications
Product Type	Pathway
Color	Silver
Sub Brand	Wyr-Grid
Finish/Coating	Electro Zinc
For Use With	WGSPL2430BL, WGINTSPLBL
Material	Steel
Load Capacity of 6-Foot Span (lb/ft)	69
Overall Height (In.)	2.09
Overall Height (mm)	53.1
Overall Length (ft.)	10
Overall Length (m)	3
Overall Width (In.)	24
Overall Width (mm)	609.6
Standards Met	UL Classified for their Suitability for use as Equipment Grounding Conductor in Accordance with Sections 392.3(C) and 392.7(B) of the NEC, Metal Cable Tray in Accordance with CAN/CSA-C22.2 No.126.1-02, NEMA VE 1-2002 and ANSI/NFPA 70, “National Electric C
