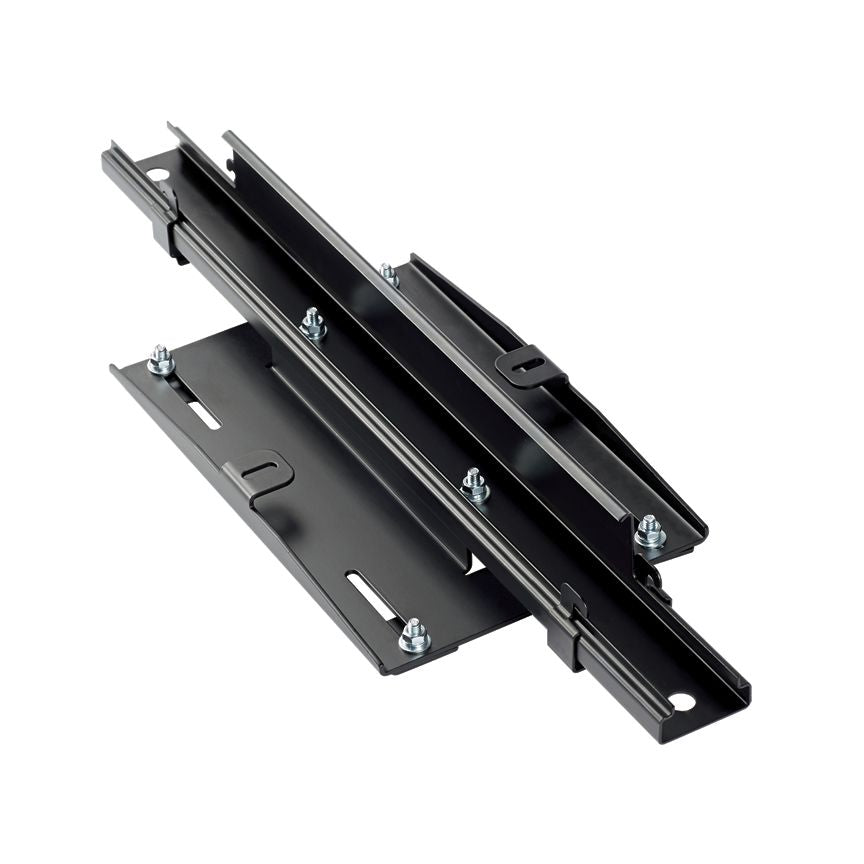

Panduit WG2PRB18BL | Wyr-Grid Support Bracket, 18", BL, 1EA
Description
Description
Offering versatile installation options for efficient cable management with our 2-post channel rack mount trapeze bracket securely supports our pathways.
The Wyr-Grid Support Bracket is used to support the 18.0" (457.2 mm) wide Wyr-Grid Pathway to standard 3.0" (76.2 mm) or 6.0" (152.4 mm) EIA channel racks. It is black powder coated and is 3.4" (86.4 mm) high, 22.5" (571.5 mm) long, and 7.6" (193.0 mm) wide. The bracket can be installed as a parallel or perpendicular support for the Wyr-Grid Pathway and attaches directly to Panduit channel racks. It comes in standard packages of one.
Panduit Support Bracket, 21 in Length, 7.56 in Width, 3.4 in Height, Rack Mounting, For Use With: Wyr-Grid Overhead Tray Routing System, Black
Panduit - WG2PRB18BL - Features
- Can be installed as a parallel or perpendicular support for the Wyr-Grid pathway
- Attaches directly to Panduit channel racks
Specifications
Specifications
Panduit - WG2PRB18BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WG2PRB18BL |
| Components | Fittings |
| Finish | Black |
| Material | Steel |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131700 |
| Product Type | Bracket |
| Application | (1) Within Data Centers, Connected Buildings and Industrial Automation Application (2) FiberRunner Pathways |
| Color | Black |
| Finish/Coating | Powder-Coated |
| For Use With | 18" Wyr-Grid Pathways |
| Includes | (1) One 18" Wyr-Grid Trapeze Bracket Assembly. (2) One Wyr-Grid Rack Mount Bracket Base Assembly. (3) Two 1/4-20 X .75" Round Head Square Neck Bolt (4) Two 1/4" SAE Flat Washer (5) Two 1/4" Helical Spring Lockwasher (6) Two 1/4-20 Hex Nut |
| Material | Steel |
| Sub Brand | Wyr-Grid |
| Standards Met | RoHS Compliant |
| Number of Pieces | 2 |
| Overall Length (In.) | 21 |
| Overall Length (mm) | 533.4 |
| Overall Width (In.) | 7.56 |
| Overall Width (mm) | 191.9 |
| Overall Height (In.) | 3.4 |
| Overall Height (mm) | 86.4 |
| UPC | 07498361717 |
Panduit - WG2PRB18BL - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 7326.90.8688 |
Panduit - WG2PRB18BL - Videos
| Panduit WG2PRB18BL Video 1 | Click to View |
|---|
