Panduit WGCMK1200BL | ElevatedTrapezeBracket,1200mm,BL1EA
Regular price
$668.99
Unit price
Brand: Panduit
|
SKU:
608703
Regular price
$668.99
Unit price
Description
Description

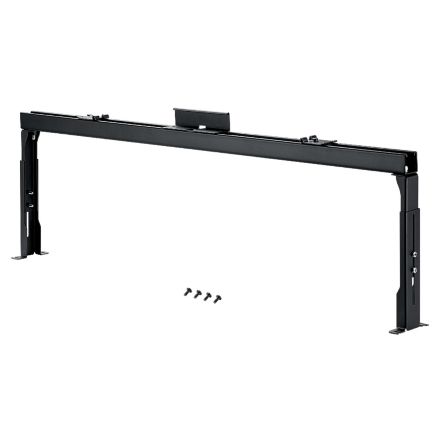

Panduit WGCMK1200BL | ElevatedTrapezeBracket,1200mm,BL1EA
The elevated trapeze bracket in black is 16.8 (426.7 mm) high, 46.3 (1176.1 mm) long, 3.4 (86.4 mm) wide, and 46.3 (1176.1 mm) deep. It is designed for use on a Net-Access N-Type or S-Type 47.2 (1200 mm) Cabinet that is elevated. The bracket comes in standard packages of one.
Panduit WGCMK1200BL Bracket, Elevated Trapeze, For Net-access N-type Or S-type 1200mm Cabinets
Specifications
Specifications
Panduit - WGCMK1200BL - Product Categories
- Wire Routing, Management & Protection
- Wire Mesh Mounting Brackets
Panduit - WGCMK1200BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WGCMK1200BL |
| Item Description | ElevatedTrapezeBracket,1200mm,BL1EA |
| Application | (1) Within Data Centers, Connected Buildings and Industrial Automation Application (2) FiberRunner Pathways |
| Product Type | Bracket |
| Color | Black |
| Finish/Coating | Black/Powder-Coated |
| For Use With | Wyr-Grid Pathways |
| Includes | (1) One Wyr-Grid Center Support Bracket (2) Two Wyr-Grid Upright Support Brackets (3) Two Wyr-Grid/Fiberrunner Quickloack Clip Assembly (4) One Top of Cabinet 1200 Depth Strut Assembly (5) Two M10 X 1.5 X 30 Socket Head Cap Screw (6) Two M10 Helical Sprin |
| Material | Steel |
| Sub Brand | Wyr-Grid |
| Standards Met | RoHS Compliant |
| Number of Pieces | 2 |
| Overall Height (In.) | 16.75 |
| Overall Height (mm) | 425.5 |
| Overall Length (In.) | 46.3 |
| Overall Length (mm) | 1175 |
| Overall Width (In.) | 3.4 |
| Overall Width (mm) | 86.4 |
| Components | HARDWARE |
| UNSPSC Code | 39131700 |
Panduit - WGCMK1200BL - Package Information
| UPC | 07498398938 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1989 |
| Standard Ctn. Quantity | 4 |
| Standard Ctn. Volume (cf) | 0.7956 |
Panduit - WGCMK1200BL - Videos
| Video 1 | Click to View |
|---|
