Panduit WGSPL1218EZ | Wyr-Grid Splice Connector
Description
Description

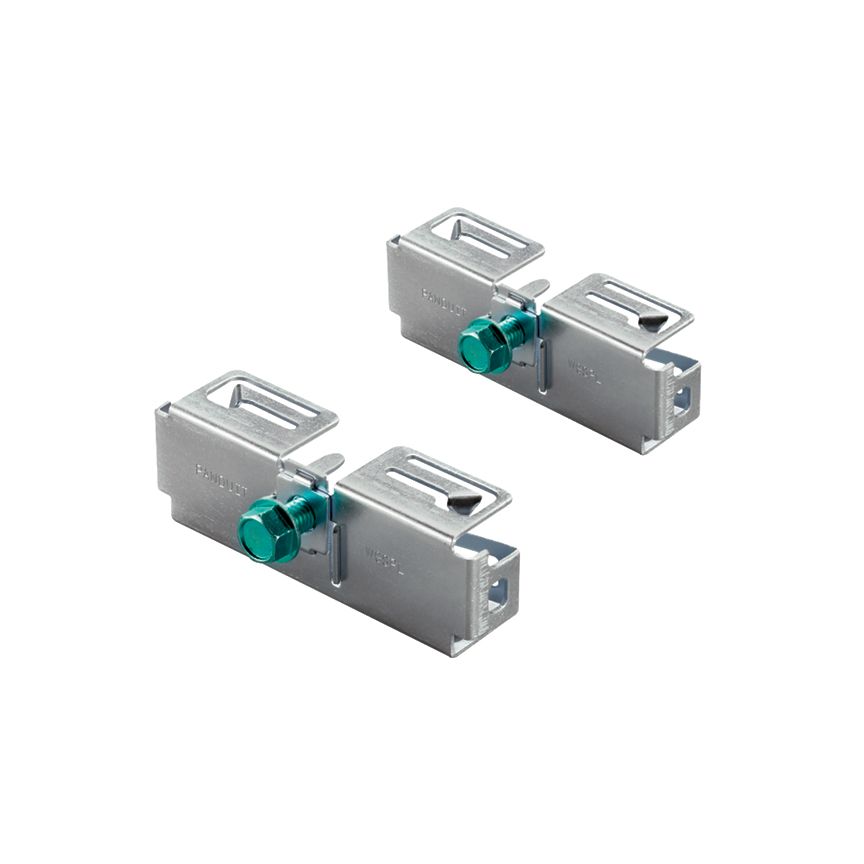

The electro zinc-plated straight splice connector in silver is 1.57" (39.8 mm) high and quickly joins two 8" (203 mm), 12" (305 mm), or 18" (457 mm) wide Wyr-Grid Pathways together. A thread cutting screw pierces through the paint of adjacent pathway sections to provide a completely bonded connection, ensuring electrical continuity between the pathways. The package contains two components needed to join two pathway sections.
Panduit WGSPL1218EZ Panduit Wgspl1218ez Splices An
Specifications
Specifications
Panduit - WGSPL1218EZ - Product Categories
- Wire Routing, Management & Protection
- Wire Mesh Connectors
Panduit - WGSPL1218EZ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WGSPL1218EZ |
| Item Description | Wyr-Grid Splice Connector |
| Application | Quickly Joins Two 8" (203 mm), 12" (305 mm), or 18" (457 mm) Wide Wyr-Grid Pathways together |
| Color | Silver |
| Finish/Coating | Electro Zinc |
| For Use With | 8" (203 mm), 12" (305 mm), or 18" (457 mm) Wide Wyr-Grid Pathways |
| Material | Steel |
| Number of Pieces | 2 |
| Overall Height (In.) | 1.57 |
| Overall Height (mm) | 39.8 |
| Overall Length (In.) | 4.67 |
| Overall Length (mm) | 118.5 |
| Overall Width (In.) | 1.12 |
| Overall Width (mm) | 28.5 |
| Sub Brand | Wyr-Grid |
| Product Type | Splice Connector |
| Standards Met | RoHS Compliant |
Panduit - WGSPL1218EZ - Package Information
| UPC | 07498357704 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0347 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.3466 |
Panduit - WGSPL1218EZ - Videos
| Video 1 | Click to View |
|---|
