Brand: Panduit
|
SKU:
605447

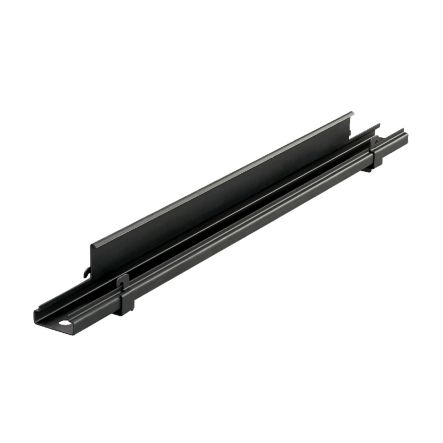

Panduit WGTBS24BL Support Bracket, Wyr-Grid Pathway, Black Powder Coated, Hardware to Attach to Threaded Rod Sold Separately
Regular price
$86.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit WGTBS24BL Support Bracket, Wyr-Grid Pathway, Black Powder C...
Regular price
$86.65
Unit price
Description
Description
Panduit WGTBS24BL | Trapeze Bracket,24"BL,1EA
The black powder coated bracket is 2.41" (61.2 mm) high, 28.5" (723.9 mm) long, 2.04" (51.8 mm) wide, and 28.5" (723.9 mm) deep. It is designed to support a 24" (609.6 mm) wide Wyr-Grid Pathway from the ceiling using a pair of 1/2" (12 mm) threaded rod drops. The hardware for attaching the bracket to a threaded rod is sold separately. The black powder coated bracket comes in standard packages of one.
Specifications
Specifications
Panduit - WGTBS24BL - Product Categories
- Wire Routing, Management & Protection
- Wire Mesh Mounting Brackets
Panduit - WGTBS24BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WGTBS24BL |
| Item Description | Trapeze Bracket,24"BL,1EA |
| Application | (1) Within Data Centers, Connected Buildings and Industrial Automation Application (2) FiberRunner Pathways |
| Product Type | Bracket |
| Color | Black |
| Finish/Coating | Black/Powder-Coated |
| For Use With | Wyr-Grid Pathways |
| Includes | (1) Wry-Grid Cantilever Bracket (2) Wry-Grid Bracket Clip (3) 1/4-20 X 3/8 Hex Head Cap Screw |
| Material | Steel |
| Sub Brand | Wyr-Grid |
| Standards Met | RoHS Compliant |
| Number of Pieces | 1 |
| Overall Height (In.) | 2.41 |
| Overall Height (mm) | 61.2 |
| Overall Length (In.) | 28.5 |
| Overall Length (mm) | 723.9 |
| Overall Width (In.) | 2.22 |
| Overall Width (mm) | 56.4 |
Panduit - WGTBS24BL - Package Information
| UPC | 07498361195 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0994 |
| Standard. Ctn. Quantity | 5 |
| Standard. Ctn. Volume (cf) | 0.4970 |
Panduit - WGTBS24BL - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
