Panduit WGTBS8BL | Trapeze Bracket,8"BL,1EA
Regular price
$38.52
Unit price
Brand: Panduit
|
SKU:
622601
Regular price
$38.52
Unit price
Description
Description
Panduit WGTBS8BL | Trapeze Bracket,8"BL,1EA

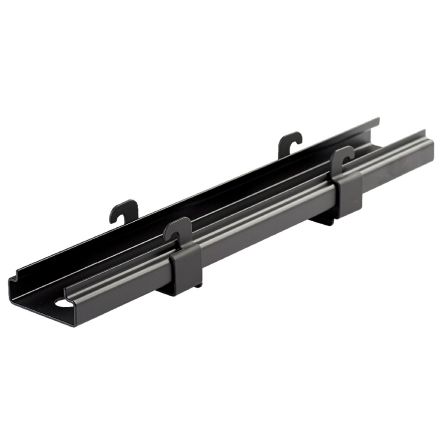

The black powder coated trapeze bracket 0.72" (18.3 mm) high, 12.5" (317.5 mm) long, 2.04" (51.8 mm) wide, and 12.5" (317.5 mm) deep. It is used to support an 8" (203.2 mm) wide Wyr-Grid Pathway from the ceiling using a pair of 1/2" or (12 mm) threaded rod drops. The hardware for attaching the bracket to a threaded rod is sold separately. The trapeze bracket comes in standard packages of one.
Panduit WGTBS8BL Bracket, Trapeze, 8, Wyr-grid, Black
Specifications
Specifications
Panduit - WGTBS8BL - Product Categories
- Wire Routing, Management & Protection
- Wire Mesh Mounting Brackets
Panduit - WGTBS8BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WGTBS8BL |
| Item Description | Trapeze Bracket,8"BL,1EA |
| Application | (1) Within Data Centers, Connected Buildings and Industrial Automation Application (2) FiberRunner Pathways |
| Product Type | Bracket |
| Color | Black |
| Finish/Coating | Black/Powder-Coated |
| For Use With | Wyr-Grid Pathways |
| Includes | (1) Wry-Grid Cantilever Bracket (2) Wry-Grid Bracket Clip (3) 1/4-20 X 3/8 Hex Head Cap Screw |
| Material | Steel |
| Sub Brand | Wyr-Grid |
| Standards Met | RoHS Compliant |
| Number of Pieces | 1 |
| Overall Height (In.) | 0.72 |
| Overall Height (mm) | 18.3 |
| Overall Length (In.) | 12.5 |
| Overall Length (mm) | 317.5 |
| Overall Width (In.) | 2.22 |
| Overall Width (mm) | 56.4 |
| Components | HARDWARE |
| UNSPSC Code | 39131700 |
Panduit - WGTBS8BL - Package Information
| UPC | 07498382030 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0391 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.1956 |
Panduit - WGTBS8BL - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
Documents and Downloads
Documents and Downloads
