Panduit WGWMTB12BL Bracket, Wall Mount, 12"; Width, Wyr-Grid, Black Powder Coated
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

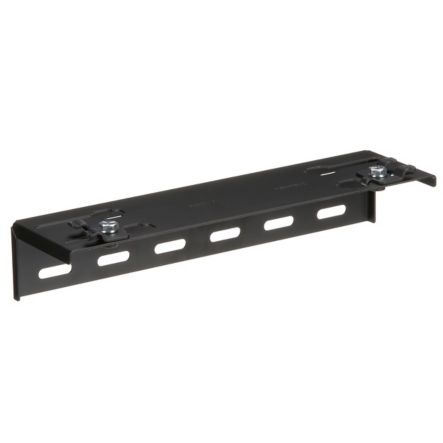

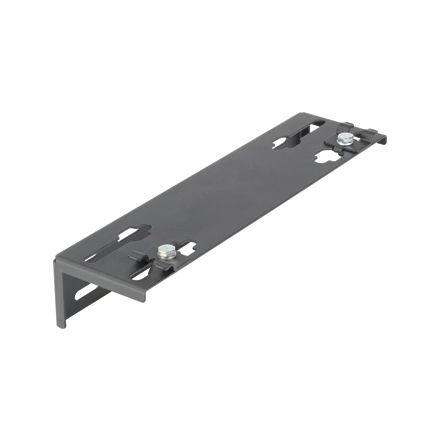

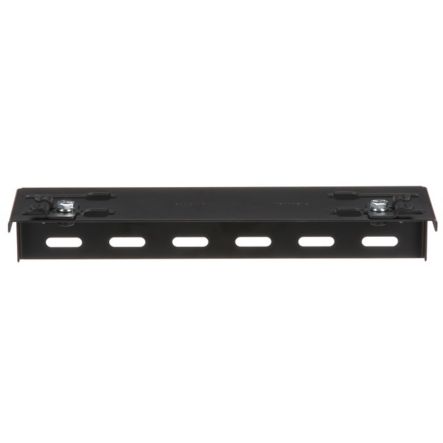

The black powder coated wall mount bracket is 2.44" (61.98 mm) high, 11.27" (286.26 mm) long, 3.12" (79.25 mm) wide, and 11.27" (286.26 mm) ddep. It is used to support the end of the 12" (304.8 mm) Wyr-Grid Pathway against a wall. The mounting hardware for attaching the bracket to the wall is not included. The wall mount bracket comes in standard packages of one.
Specifications
Specifications
Panduit - WGWMTB12BL - Product Categories
- Wire Routing, Management & Protection
- Wire Mesh Mounting Brackets
Panduit - WGWMTB12BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WGWMTB12BL |
| Item Description | Wall Mount Bracket,12",BL,1EA |
| Application | (1) Within Data Centers, Connected Buildings and Industrial Automation Application (2) FiberRunner Pathways |
| Product Type | Bracket |
| Color | Black |
| Finish/Coating | Black/Powder-Coated |
| For Use With | Wyr-Grid Pathways |
| Includes | (1) Wyr-Grid Wall Mount Bracket (2) Wyr-Grid Quick Lock Clip (3) 1/4-20x1/2 Hex Head Cap Screw (4) 1/4 Helical Spring Lockwasher |
| Material | Steel |
| Sub Brand | Wyr-Grid |
| Standards Met | RoHS Compliant |
| Number of Pieces | 1 |
| Overall Height (In.) | 2.44 |
| Overall Height (mm) | 61.8 |
| Overall Length (In.) | 11.27 |
| Overall Length (mm) | 286.3 |
| Overall Width (In.) | 3.12 |
| Overall Width (mm) | 79.2 |
Panduit - WGWMTB12BL - Package Information
| UPC | 07498332208 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0704 |
| Standard. Ctn. Quantity | 5 |
| Standard. Ctn. Volume (cf) | 0.3518 |
Panduit - WGWMTB12BL - Videos
| Video 1 | Click to View |
|---|
