Panduit WGWMTB1830BL Bracket, Wall Mount, 18";, 30"; Widt...
Description
Description

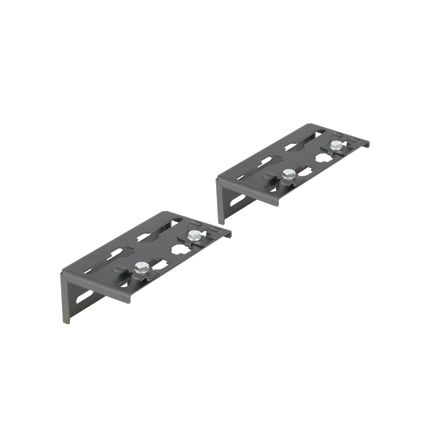

The black powder coated wall bracket is 2.44" (61.98 mm) high, 6.05" (153.67 mm), long, 3.12" (79.25 mm) wide, and 6.05" (153.67 mm) deep. It is used to support the end of the 18" (457.2 mm), 24" (609.6 mm), or 30" (762 mm) Wyr-Grid Pathway against a wall. The package contains two components that are required to support the wider pathway sections. The mounting hardware for attaching the bracket to the wall is not included. The wall mount bracket comes in standard packages of one.
Specifications
Specifications
Panduit - WGWMTB1830BL - Product Categories
- Wire Routing, Management & Protection
- Wire Mesh Mounting Brackets
Panduit - WGWMTB1830BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WGWMTB1830BL |
| Item Description | Bracket Wall Mount,18-30",BL,1EA |
| Application | (1) Within Data Centers, Connected Buildings and Industrial Automation Application (2) FiberRunner Pathways |
| Product Type | Bracket |
| Color | Black |
| Finish/Coating | Black/Powder-Coated |
| For Use With | Wyr-Grid Pathways |
| Includes | (1) Wyr-Grid Wall Mount Bracket (2) Wyr-Grid Quick Lock Clip (3) 1/4-20x1/2 Hex Head Cap Screw (4) 1/4 Helical Spring Lockwasher |
| Material | Steel |
| Sub Brand | Wyr-Grid |
| Standards Met | RoHS Compliant |
| Number of Pieces | 1 |
| Overall Height (In.) | 2.44 |
| Overall Height (mm) | 61.8 |
| Overall Length (In.) | 6.05 |
| Overall Length (mm) | 153.7 |
| Overall Width (In.) | 3.12 |
| Overall Width (mm) | 79.2 |
Panduit - WGWMTB1830BL - Package Information
| UPC | 07498332209 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0704 |
| Standard. Ctn. Quantity | 5 |
| Standard. Ctn. Volume (cf) | 0.3518 |
Panduit - WGWMTB1830BL - Videos
| Video 1 | Click to View |
|---|
