Panduit WGWMTB8BL | Bracketwallmount,8",Bl,1Ea
Regular price
$42.64
Unit price
Brand: Panduit
|
SKU:
700344
Regular price
$42.64
Unit price
Description
Description
Panduit WGWMTB8BL | Bracketwallmount,8",Bl,1Ea

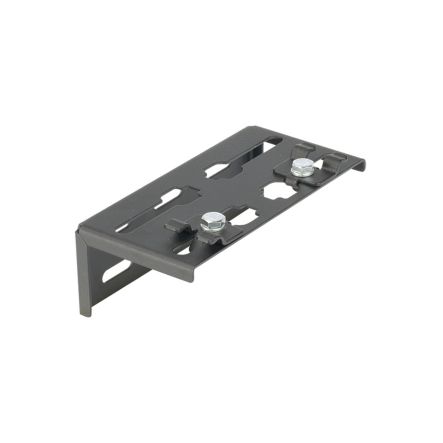

Panduit WGWMTB8BL Bracket, Wall Mount, 8"; Width, Wyr-grid, Black Powder Coated
The black powder coated bracket is made of steel and is 2.44" (61.98 mm) high, 6.05" (153.67 mm), long, 3.12" (79.25 mm) wide, and 6.05" (153.67 mm) deep. It is used to support the end of the 8.0" (203 mm) Wyr-Grid Pathway against a vertical surface such as a wall. Mounting hardware for attaching the bracket to a wall is not included. The bracket comes in standard packages of one.
Specifications
Specifications
Panduit - WGWMTB8BL - Product Categories
- Wire Routing, Management & Protection
- Wire Mesh Mounting Brackets
Panduit - WGWMTB8BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WGWMTB8BL |
| Item Description | Bracketwallmount,8",Bl,1Ea |
| Application | (1) Within Data Centers, Connected Buildings and Industrial Automation Application (2) FiberRunner Pathways |
| Product Type | Bracket |
| Color | Black |
| Finish/Coating | Black/Powder-Coated |
| For Use With | Wyr-Grid Pathways |
| Includes | (1) Wyr-Grid Wall Mount Bracket (2) Wyr-Grid Quick Lock Clip (3) 1/4-20x1/2 Hex Head Cap Screw (4) 1/4 Helical Spring Lockwasher |
| Material | Steel |
| Sub Brand | Wyr-Grid |
| Standards Met | RoHS Compliant |
| Number of Pieces | 1 |
| Overall Height (In.) | 2.44 |
| Overall Height (mm) | 61.8 |
| Overall Length (In.) | 6.05 |
| Overall Length (mm) | 153.7 |
| Overall Width (In.) | 3.12 |
| Overall Width (mm) | 79.2 |
| Part Features | Wyr-Grid Wall Mount Bracket mounts to a vertical surface, such as a wall, to support Wyr-Grid Pathway |
Panduit - WGWMTB8BL - Package Information
| UPC | 07498381089 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0073 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.0367 |
Panduit - WGWMTB8BL - Videos
| Video 1 | Click to View |
|---|
