Panduit WMPV22E | NetRunner Vertical Dual-Sided Manager, 22RU, 4.9 ...
Description
Description

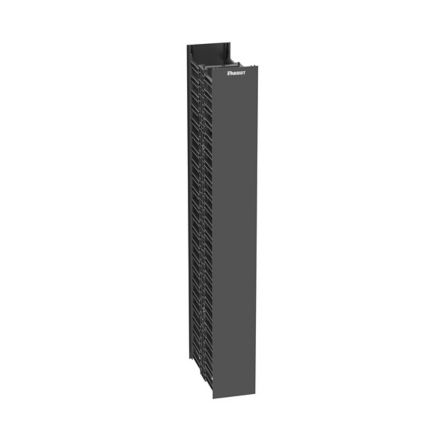

The NetRunner Vertical Cable Manager is a dual-sided cable manager that provides a cost-effective solution to organize, manage, and protect network cabling in telecommunication rooms and data centers. Cable management fingers simplify cable routing during installation and maintenance. The bend radius control helps protect cables from kinks and snags, ensuring system performance and reliability. The manager is 22 RU, 5 inches wide x 12 inches deep, includes dual-hinging covers, and is black.
Panduit - WMPV22E - Features

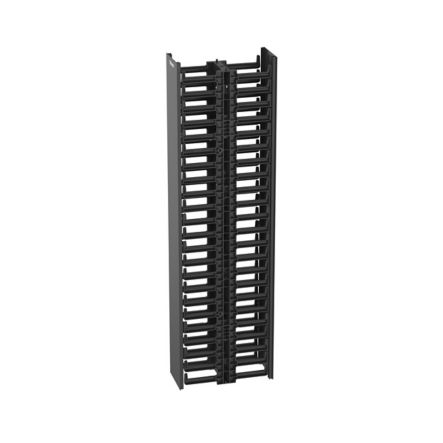

- Large finger openings accommodate up to 24 Category 6 cables
- Integral cable retainers on the end of each finger to help contain cables within each rack unit
- Bend radius fingers align with rack spaces to support cables as they transition to the vertical pathway

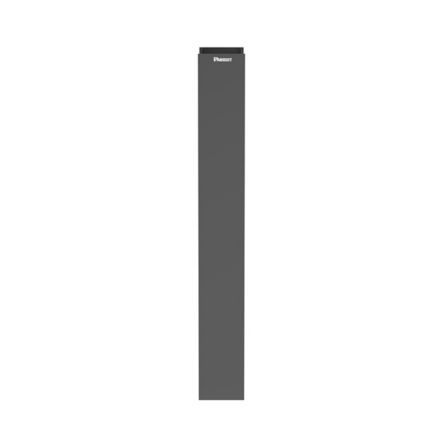

- Dual hinged covers can be opened 110 to the left or right to provide complete access to the cables inside the vertical pathway
- Snap-on cable retainers can be placed on to fingers to help retain cables in channel during installation and maintenance
- Vertical managers include hinged covers, cable retainers, mounting brackets and #12-24 screws
Specifications
Specifications
Panduit - WMPV22E - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Vertical Cable Managers
Panduit - WMPV22E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WMPV22E |
| Item Description | NetRunner Vertical Dual-Sided Manager, 22RU, 4.9 in. Wide |
| Product Type | Dual Sided Manager |
| Body Material | ABS |
| Orientation | Vertical |
| Cover Material | PVC |
| Finger Material | ABS |
| Sub Brand | NetRunner |
| Overall Height (In.) | 41.5 |
| Overall Height (mm) | 1054 |
| Overall Width (In.) | 4.9 |
| Overall Width (mm) | 125 |
| Overall Depth (In.) | 12 |
| Overall Depth (mm) | 306 |
| Number of Rack Units | 22.5 |
| Environment | Indoor |
| Color | Black |
| Standards Met | RoHS Compliant |
| Includes | Manager, cover, hardware kit |
Panduit - WMPV22E - Package Information
| UPC | 07498365615 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.7546 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
