Panduit WMPVCBE NetRunner Vertical Cable Manager Center Mounting Br...
Regular price
$36.55
Unit price
Brand: Panduit
|
SKU:
310344
Regular price
$36.55
Unit price
Description
Description

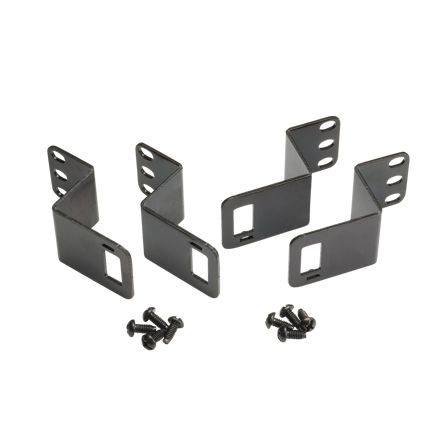

Panduit WMPVCBE | Mounting Brackets for WMPV Managers, Black, 3.71 in. Width
The NetRunner Vertical Cable Manager Mounting Bracket is used when ganging a NetRunner Vertical Cable Manager between two racks. This kit will provide additional support to the adjacent rack and can be used with any standard depth 3 inch channel rack. The steel bracket had a width of 3.71 inches and is black in color. Sold in packs of 4 brackets.
Panduit - WMPVCBE - Features
- Large finger openings accommodate up to 24 Category 6 cables
- Integral cable retainers on the end of each finger to help contain cables within each rack unit
- Bend radius fingers align with rack spaces to support cables as they transition to the vertical pathway
- Dual hinged covers can be opened 110 to the left or right to provide complete access to the cables inside the vertical pathway
- Snap-on cable retainers can be placed on to fingers to help retain cables in channel during installation and maintenance
- Vertical managers include hinged covers, cable retainers, mounting brackets and #12-24 screws
Specifications
Specifications
Panduit - WMPVCBE - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Cable Manager Accessories
Panduit - WMPVCBE - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | WMPVCBE |
| Item Description | Mounting Brackets for WMPV Managers, Black, 3.71 in. Width |
| Product Type | Hardware Kit |
| Body Material | Steel |
| For Use With | WMPV Vertical Managers |
| Sub Brand | NetRunner |
| Overall Height (In.) | 1.75 |
| Overall Height (mm) | 44.4 |
| Overall Width (In.) | 3.71 |
| Overall Width (mm) | 94.2 |
| Overall Depth (In.) | 1.64 |
| Overall Depth (mm) | 41.7 |
| Color | Black |
| Standards Met | RoHS Compliant |
Panduit - WMPVCBE - Package Information
| UPC | 07498365693 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.1755 |
