Panduit Z22C-S | Pre-Configured Network Zone | UPC - 07498325932

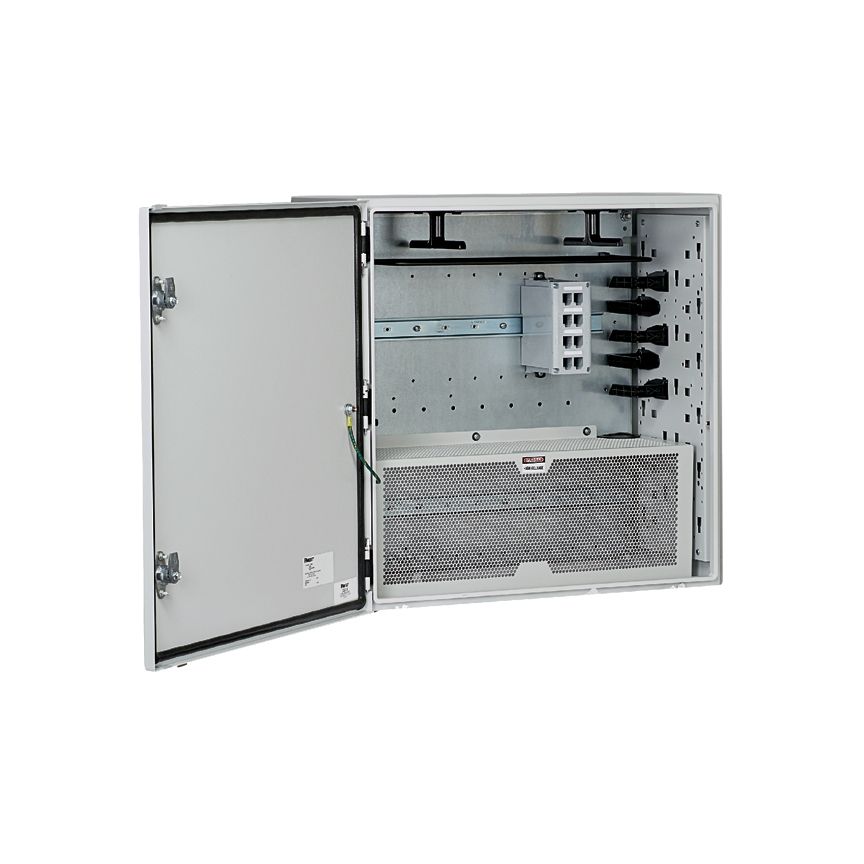

The network zone system is a mild steel enclosure that is 24" x 24". This network zone system is made for two industrial switches and includes eight Cat 6 UTP copper patch cords and jack modules, two multimode LC fiber patch cords with six LC adapters, backplane and cable management. With UL Type 4/12 and IP 66 ratings, the enclosures provide reliability and high performance, as an integral component of the end-to-end solution for Industrial Networks.

---

Panduit Z22C-S Key Specs

Product Type	Pre-Configured Network Zone
Material	Mild Steel
Number of Ports	8
Color	Gray
Number of Downlink Patch Cords	8
Number of Uplink Patch Cords	2
Overall Width (In.)	24
Overall Width (mm)	609.6
Overall Depth (In.)	11.6
Overall Depth (mm)	294.6
Overall Height (In.)	28
Overall Height (mm)	711.2
Mount Method	Wall Mount
Application	Industrial Automation
Finish/Coating	Powder-Coated
Downlink Patch Cord Type	(8) CAT 6 UTP Copper
Uplink Patch Cord Type	(2) MM LC Fiber
Connection Type	UTP
Compatible Switch Type	Industrial DIN Mount
Standards Met	UL 508A Standard for Industrial Control Panels, UL Type 4/12 or 4X, IP66 Rated, RoHS Compliant
NEMA Rating	4/12
IP Rating	IP66
Includes	(2) Cable Management Side Panels; (1) Slack Plate; (1) 1/2" Conduit Plug for Power Entry; (4) External Mounting Feet; (1) AC Wiring Cover; (1) DIN Rail for Switches (17.5"); (1) DIN Rail for Power (21.5"); (1) Fiber Slack Spool; (1) 6 Port Fiber Surface Mount Box; (1) Strain Relief Bar; (1) DIN Rail Mounted Copper Patching Module; (10) Cable Management L Rings; (1) Ground Bar; (8) CAT 6 Copper Patch Cord, 3ft; (8) CAT 6 Mini-Com Copper Modules; (2) LC Fiber Optic Patch Cords, 1m (6) LC Fiber Optic Adapter Modules
