Panduit Z22U-S15 | Universal Enclosure, 24"x24", Steel, 1...
Description
Description

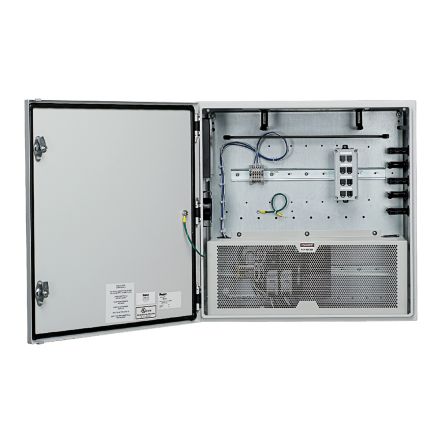

The universal network zone system is a mild steel enclosure that is 24" x 24". This network zone system is made for one industrial switch and includes eight Cat 6 UTP copper patch cords and jack modules, two multimode LC fiber uplink patch cords with six adapters and redundant power supplies and a maintenance-free Uninterruptible Power Supply (UPS). The universal network zone system provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.
Panduit - Z22U-S15 - Features
- Panduit Universal Network Zone System - Network device security cabinet - gray - Z22U-S15.
- General Information
- Weight (lb)
- 90
Specifications
Specifications
Panduit - Z22U-S15 - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Pre-Configured Enclosures
Panduit - Z22U-S15 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | Z22U-S15 |
| Item Description | Universal Enclosure, 24"x24", Steel, 1 Switch |
| Product Type | Universal Network Zone |
| Material | Mild Steel |
| Number of Ports | 8 |
| Color | Gray |
| Number of Downlink Patch Cords | 8 |
| Number of Uplink Patch Cords | 2 |
| Overall Width (In.) | 24 |
| Overall Width (mm) | 609.6 |
| Overall Depth (In.) | 11.6 |
| Overall Depth (mm) | 294.6 |
| Overall Height (In.) | 24 |
| Overall Height (mm) | 609.6 |
| Mount Method | Wall Mount |
| Application | Industrial Automation |
| Finish/Coating | Powder-Coated |
| Downlink Patch Cord Type | (8) CAT 6 UTP Copper |
| Uplink Patch Cord Type | (2) MM LC Fiber |
| Connection Type | UTP |
| Switch Capacity | 1 |
| Compatible Switch Type | Industrial DIN Mount |
| Power Source | Redundant Power Supply |
| Standards Met | UL 508A Standard for Industrial Control Panels, UL Type 4/12 or 4X, IP66 Rated, RoHS Compliant |
| NEMA Rating | 4/12 |
| IP Rating | IP66 |
| Includes | (2) Cable Management Side Panels, (1) Top Slack Plate, (1) 1/2" Conduit Plug for Power Entry, (1) 6 Port Ground Bar, (4) External Mounting Feet, (1) Protective AC Wiring Cover, (1) DIN Rail for Switches (16.0"), (1) DIN Rail for Power Accessories (20.5"), (1 or 2) 8 Port DIN Rail Mount Copper Patch Module (CDPP8RG), (1 or 2) 8 Port DIN Rail Mount Fiber Patch Module (FDME8RG), (1) 6 or 12 Port Fiber Uplink Patch Panel (6 Port - CBXF6BL-AY, 12 Port - CBXF12BL-AY), (1) Fiber Slack Spool, (1) Strain Relief Bar, (10) Cable Management L Rings |
Panduit - Z22U-S15 - Package Information
| UPC | 61305639559 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 10.0104 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
