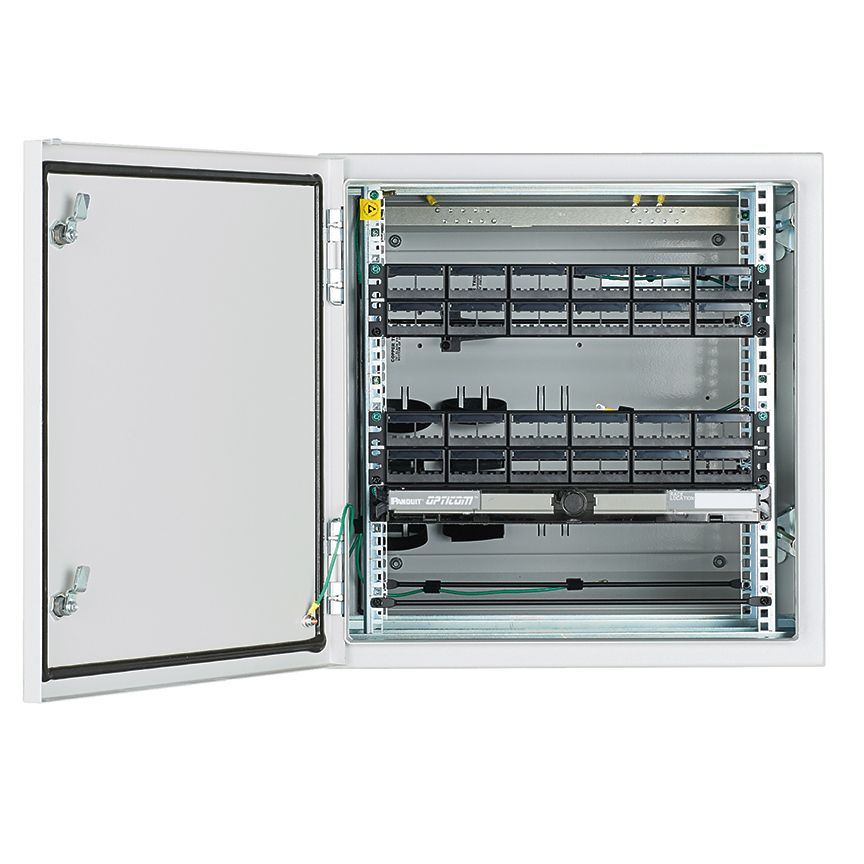

Panduit ZDF242430 | Industrial Distribution Frame | UPC - 61305626859

The pre-configured industrial distribution frame (IDF) is 12 RU and is made for two 19" rack mount switches. The IDF is engineered to deploy and protect 19" rack mount switches on the factory floor. The IDF protects switches, both physically and thermally in harsh industrial environments. The IDF includes keys, cage nut rails, one fiber tray, two patch panels, cable management, ground whips/bar/cable, DIN rail mounting provision, and cable/fiber/power penetration recommendation template.

---

Panduit ZDF242430 Key Specs

Product Type	Industrial Distribution Frame
Material	Mild Steel
Number of Ports	72
Color	Gray
Overall Width (In.)	23.62
Overall Width (mm)	599.9
Overall Depth (In.)	29.95
Overall Depth (mm)	760.7
Overall Height (In.)	24.09
Overall Height (mm)	611.9
Mount Method	Wall Mount
Application	Industrial Automation
Finish/Coating	Powder-Coated
Switch Capacity	2
Compatible Switch Type	19" Rack Mount
Number of Rack Units	12
Maximum Load Capacity (kg)	113.4
Maximum Load Capacity (lb)	250
Standards Met	UL 508A Standard for Industrial Control Panels, cUL Listed per CSA, UL Type 4/12 or 4/4X/12 and IP66 Rated; RoHS Compliant
NEMA Rating	4/12
IP Rating	IP66
Includes	12RU Dual Hinge NEMA 4/12 Enclosure; Keylocking Wing Knobs are Included Providing Access Control to the Enclosure; (2) Keys are Included with Each Enclosure; Accommodations for an Optional Air Conditioner; Installed Front and Rear Cage Nut Rails in Optimized Positions for Equipment Mounting; Installed Fiber Enclosure (72 Fiber Capacity); Installed (2) 48-Port Patch Panels; Installed Cable Management; Installed Door Ground Whips; Equipment Ground Whips (One End); Installed Ground Bar; Infrastructure Ground Cable; 10" Long DIN Rail Mounting Provision; Cable/Fiber/Power Penetration Recommendation Template; Instructions for Cable Routing and Management
