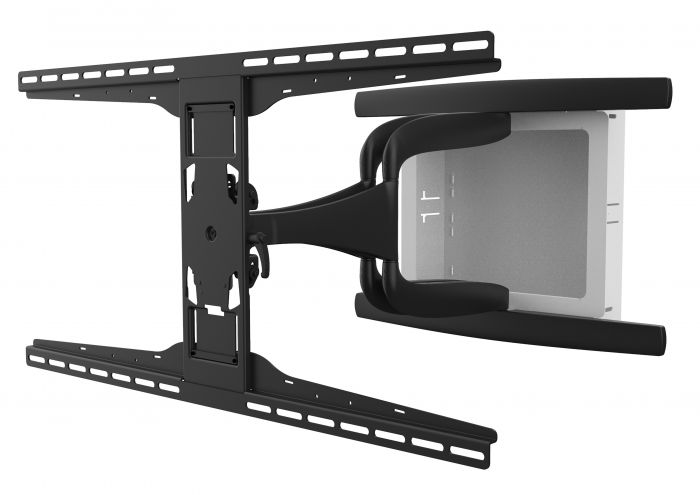

Peerless IM771PU | DesignerSeriesTM Articulating Mount with In-Wall Box for 42" to 90" Ultra-Thin Displays

Key Features

• Includes Articulating Mount with 800 x 400mm VESA adaptors
• Up to ±90° of side-to-side swivel
• Added ±5° of roll for post-installation display leveling without the use of tools
• Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
• Landscape or portrait mounting options increases display versatility
• Low profile design provides an ADA compliant solution when used with displays 2" thick or less
• Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
• Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit
• Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
• Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
• Knock-outs provide the ability to mount up to four single gang outlets; Compatible with RACO 420 gang box or equivalent
• Integrated cable tie locations
