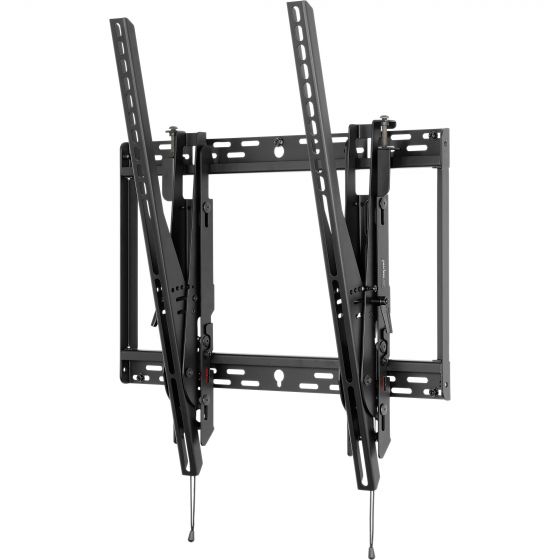

Peerless STP680 | Universal Portrait Tilt Wall Mount
Description
Description
The Peerless-AV’s SmartMount Universal Portrait Tilt Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the STP680’s robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount’s built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.
Key Features
- Universal mount fits displays with mounting patterns up to 455 x 650mm (17.91" W x 25.59" H)
- Adjustable up to 15° of forward tilt and -5° of backward tilt for the optimal viewing angle
- Optional IncreLokTM feature offers fixed tilt angles of -5°, 0°, 5°, 10°, 15°
- Easy-GripTM ratcheting handle locks the display into place
- Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
- Lateral display adjustment up to 1.63" (41mm)
- 1" of post-installation vertical adjustment provides flexibility in the installation
- Includes fastener pack with all necessary mounting and display attachment hardware (including M10)
Specifications
Specifications
Specifications
| Manufacturer | Peerless-AV |
|---|---|
| Monitor Type | Flat Panel Monitors |
| Supported Weight | 350 lbs |
| UNSPSC Code | 45111800 |
