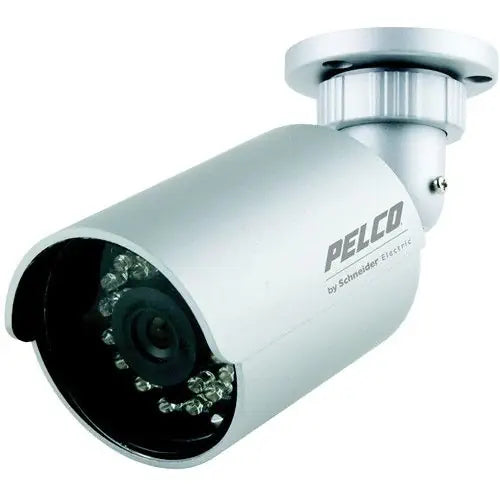

Pelco BU4-IRF4-4X | 1/3" CCD 540 TVL Integrated Outdoor IR Bul...
Description
Description
The BU4-IRF4-4X is Pelco’s entry-level integrated IR bullet CCD camera. It uses a group of integrated infrared LEDs to deliver high quality pictures, even at night with zero illumination.
The BU4-IRF4-4X is a high resolution digital camera with 540 TVL of resolution and a minimum of 0.2 lux illumination in color mode. With the included IR supplemental lighting, the BU4-IRF4-4X operates under zero lux (monochrome mode). The camera uses automatic gain control (AGC) to optimize the video signal.
The BU4-IRF4-4X includes automatic white balance (AWB) for difficult lighting situations and digital noise reduction (DNR) that minimizes environment noise levels to produce clear image quality.
The BU4-IRF4-4X has a rugged, outdoor design and an impact resistance that meets the IK10 standard. The BU4-IRF4-4X has a wide operating temperature (–30° to 50°C), which makes it an ideal solution for most rugged outdoor applications. The BU4-IRF4-4X also meets weathertight IP66 standards.
Typical applications for the BU4-IRF4-4X include outdoor boundary surveillance that has zero light at night and a need to supplement the scene with IR light.
Pelco - BU4-IRF4-4X - Features
- 540 TV Lines
- High Sensitivity (Zero Lux)
- Sony® 1/3-Inch Super HAD II CCD™
- NextChip Digital Signal Processor (DSP)
- 12 VDC Power with Internal Synchronization
- 2D Digital Noise Reduction (DNR)
- 15 Meters of IR Illumination Distance
- Weathertight Outdoor Operation (IP66)
- Rugged, Vandal-Resistant Design (IK10)
- Environmental Capability with a Wide Operating Temperature
- Low Power Consumption
- Cable Feedthrough Mount Included
Specifications
Specifications
Pelco - BU4-IRF4-4X - Specifications
| SKU | BU4-IRF4-4X |
|---|---|
| Item Description | 1/3" CCD 540 TVL Integrated Outdoor IR Bullet Camera, PAL, 3.6mm |
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Vandal Resistant, Weather Resistant |
| Manufacturer | Pelco |
| NDAA | Compliant |
| Camera Signal | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 0~60 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Electronic Shutter | Auto, 1/50 ~ 1/10,000 sec |
| Image Device | Sony 1/3-Inch Super HAD CCD |
| Image Pixels-Effective | 752 (H) x 582 (V), approx. 440k |
| IR Distance | 15m/49.21ft |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color (20 ms) 0.2 lux; Mono (with IR) 0.0 lux |
| Operating Humidity | 20% to 98%, noncondensing |
| Operating Temperature | –30° to 50°C (–22° to 122°F) |
| Power Consumption | 3 W (IR on, without heater); 8 W (IR on, with heater on) |
| S/N Ratio | 48 dB |
| Scanning Horizontal | 15.625 kHz |
| Scanning System | 625 lines, 2:1 interlace |
| Scanning Vertical | 50.00 Hz |
| Video Output | 1.0 Vp-p, NTSC/PAL composite, 75 ohms, BNC connector |
| Weatherproof | IP66 |
| Synchronization | Internal |
| Digital Noise Reduction | 2D |
| Angle of View | Horizontal 72°, Vertical 52° |
| Rotation Angle | ±360° |
| Automatic White Balance | 2,500° to 9,500°K |
| IR LEDs | 24 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Digital Noise Reduction | Yes |
| Auto Gain Control | Yes |
