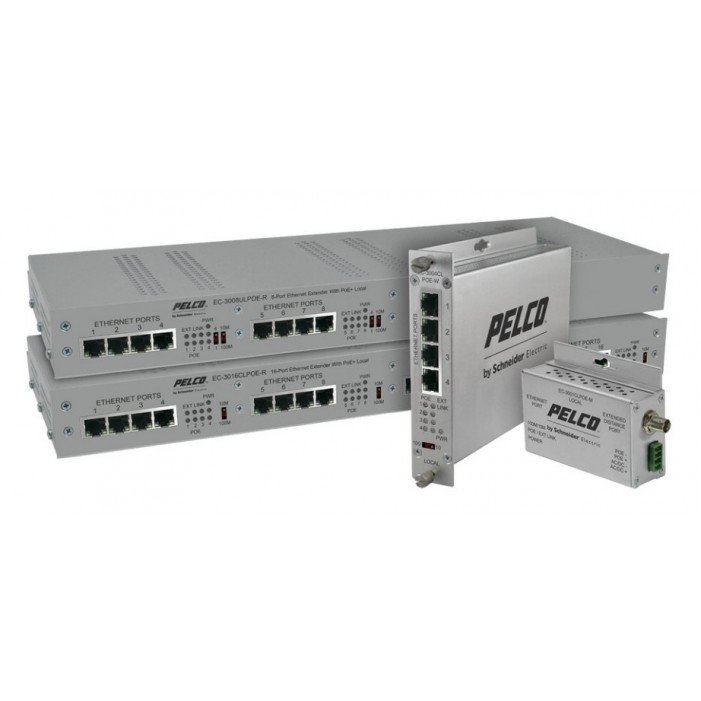

Pelco EC-3016CLPOE-R | EC-3000C/U Series EthernetConnect Extender

Overview

The EC-3000C Series is ideally suited for applications where the existing coaxial cable needs to be leveraged for transmission of IP signals. For UTP applications, the EC-3000U Series is an effective Cat5/Cat5e/Cat6 UTP extender device beyond the 100 m (328 feet) limit of traditional Ethernet. In addition, for system configurations that have a single cable c onnected to the camera, the EC-3000C/U Series can become a true PoE device and source PoE to the powered device. This eliminates t he need for midspans or PoE-enabled Ethernet switches to provide a fully 802.3at compatible application. Designed to be a cost-effective, advanced-use product, the EC-3000C/U Series provides maximum fl exibility in these applications without any programming.

The EthernetConnect EC-3000C/U Series is used to extend Ethernet over copper (EoC). The EC-3000C Series extends up to 16 channels of 10/100 Mbps Ethernet with PoE+ power injection and pass-through PoE+ over coaxial cable. The EC-3000U Series extends up to 16 channels of 10/100 Mbps Ethernet with PoE+ power injection and pass-through PoE+ over twisted pair cable (Cat5/ Cat5e/6 UTP). With the ab ility to connect directly to a PoE+ switch or the ability to generate PoE+ power with a 48 V input to either the local or remote ends, these units provide the ultimate flexibility for extending a powered device (PD) over long distance copper.

A complete set includes both a local and a remote module. Remote modules are small unit size in either a one- or four-channel configuration. Local modules are also available in the small unit size in one- or four-channel configuration as well as available in a 1 RU rack size for larger channel counts. All applicati on configurations should be verified at the time of ordering to facilitate ease of installation.
